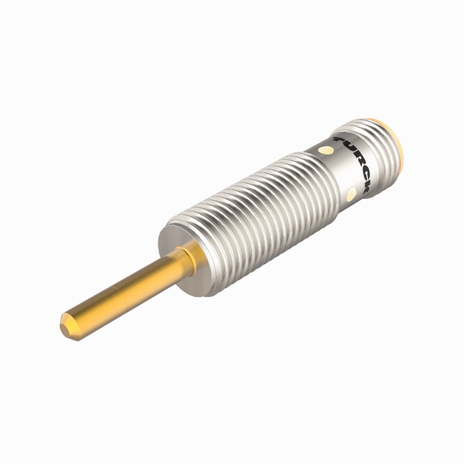

Turck NIMFE-EM12/4.0L61-UN6X-H1141/S1182
SKU: CS3814686MPN: NIMFE-EM12/4.0L61-UN6X-H1141/S1182Alternate Part #: 1600622UPC/EAN: 4047101366549
1600622 - WELDNUT, BARREL, DC, CON. M12
$472.99
UnitAvailable on backorder
Product Details
Magnetic Field Sensor
With TIN Coating
For Detection of Ferromagnetic Parts

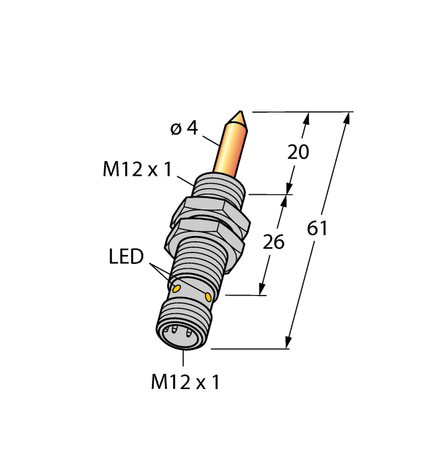

- Threaded barrel, M12 x 1
- Stainless steel, 1.4301
- DC 3- wire, 10…30 VDC
- Programmable (NC/NO) with teach adapter VB2‐SP1
- M12 x 1 connector
Attributes
| Ambient Temperature | -25…+70 °C |
| Construction Size | M12 x 1 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Stainless steel, 1.4301 (AISI 304) |
| Operating Voltage | 10…30 VDC |
| Output Function | Connection programmable, NPN |
| Protection Class | IP67 |
| Special Feature | Weld nut sensor |
Specifications
| SKU | CS3814686 |
|---|---|
| MPN | NIMFE-EM12/4.0L61-UN6X-H1141/S1182 |
| Alternate Part # | 1600622 |
| UPC/EAN | 4047101366549 |
