All ProductsTurck

Turck NI5-Q18-AP6X

SKU: CS3814486MPN: NI5-Q18-AP6XAlternate Part #: 4614606UPC/EAN: 4047101141610

4614606 - FERRITE, RECT., DC, CABLE

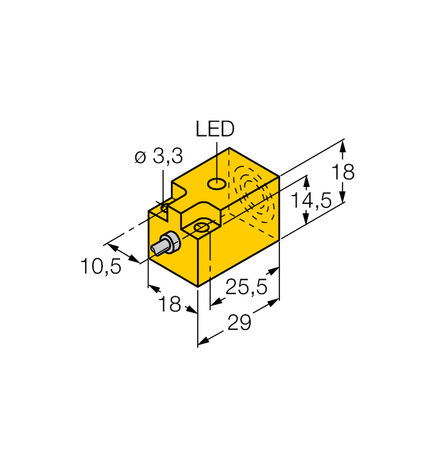

Turck NI5-Q18-AN6X, NI5-Q18-AP6X
$118.13
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

  • Rectangular, height 18 mm
  • Active face in front
  • Plastic, PBT‐GF30‐V0
  • DC 3-wire, 10…30 VDC
  • NO contact, PNP output
  • Cable connection

Attributes

Ambient Temperature -25…+70 °C
Construction Size 29 x 18 x 18 mm, Q18
Customs Tariff Number 85365019900.0000
Design Rectangular
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Cable
Housing Material Plastic, PBT-GF30-V0
Mounting Non-flush
Operating Voltage 10…30 VDC
Output Function NO contact, PNP
Protection Class IP67
Rated Switching Distance 5 mm
Switching Frequency 0.50 kHz

Specifications

SKUCS3814486
MPNNI5-Q18-AP6X
Alternate Part #4614606
UPC/EAN4047101141610
