Turck NI3-EG08K-AP6X-0.2-PSG3

SKU: CS3814143MPN: NI3-EG08K-AP6X-0.2-PSG3Alternate Part #: 4669691

4669691 - FERRITE, BARREL, DC, PIGTAIL M

Turck NI3-EG08K-AP6X-0.2-PSG3, NI3-EG08K-AP6X-0.3-PSG3
$147.63
Unit
Available on backorder
remove
add

Product Details

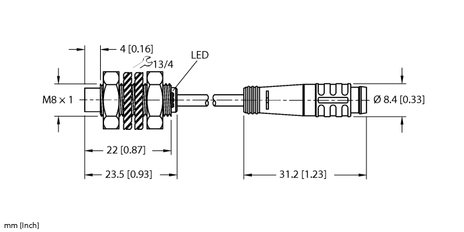

Inductive Sensor

  • M8 × 1 threaded barrel
  • Stainless steel, 1.4427 SO
  • DC 3-wire, 10…30 VDC
  • NO contact, PNP output
  • Pigtail with male end M8 x 1

Attributes

Ambient Temperature -25…+70 °C
Construction Size M8 x 1
Design Threaded barrel
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Cable with connector, M8 × 1
Housing Material Stainless steel, 1.4305 (AISI 303)
Mounting Non-flush
Operating Voltage 10…30 VDC
Output Function NO contact, PNP
Protection Class IP67
Rated Switching Distance 3 mm
Switching Frequency 3.0 kHz

Specifications

SKUCS3814143
MPNNI3-EG08K-AP6X-0.2-PSG3
Alternate Part #4669691
