Turck NI22U-Q40-AP6X2-H1141
SKU: CS3814096MPN: NI22U-Q40-AP6X2-H1141Alternate Part #: 4690229UPC/EAN: 4047101104912
4690229 - UPROX, RECT., DC, CON. M12
$206.24
UnitAvailable on backorder
Product Details
Inductive Sensor
For Parts Position Control in Die Press Tools
- Rectangular, height 38 mm
- Active face on top
- Plastic, PBT‐GF30‐V0
- Factor 1 for all metals
- Resistant to magnetic fields
- Extended temperature range
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- M12 x 1 male connector
Attributes
| Ambient Temperature | 0…+70 °C |

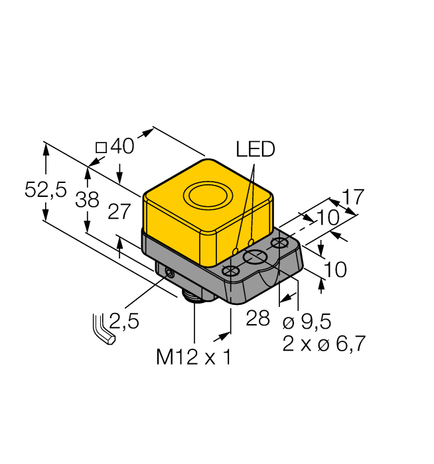

| Construction Size | 67 x 40 x 52.5 mm, Q40 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Plastic, PBT-GF30-V0 |
| Mounting | Non-flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP68 |
| Rated Switching Distance | 22 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields |
| Switching Frequency | 0.250 kHz |
Specifications
| SKU | CS3814096 |
|---|---|
| MPN | NI22U-Q40-AP6X2-H1141 |
| Alternate Part # | 4690229 |
| UPC/EAN | 4047101104912 |
