All ProductsTurck

Turck BI20U-CA40-AP6X2-H1141 W/BS2.1

SKU: CS1156545MPN: BI20U-CA40-AP6X2-H1141 W/BS2.1Alternate Part #: 1627290UPC/EAN: 4047101080636

1627290 - UPROX, RECT., DC, CON. M12

Turck BI20U-CA40-AN6X2-H1141 W/BS 2.1, BI20U-CA40-AP6X2-H1141 W/BS2.1, BI20U-CA40-AP6X2-H1141/S1590 W/BS2.1, BI20U-CA40-AP6X2-H1141/S1591 W/BS2.1, BI20U-CA40-RP6X2-H1143 W/BS2.1
$244.25
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

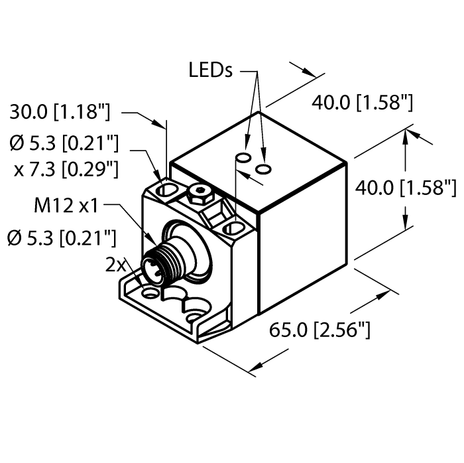

  • Rectangular, height 40 mm
  • Variable orientation of active face in 5 directions
  • Sensor housing GD-ALSI 12
  • Active face PA6-GF30
  • Factor 1 for all metals
  • Resistant to magnetic fields
  • High switching frequency
  • DC 3-wire, 10…30 VDC
  • NO contact, PNP output
  • M12 x 1 male connector

Attributes

Ambient Temperature 0…+70 °C
Construction Size 65 x 40 x 40 mm, CA40
Customs Tariff Number 85365019900.0000
Design Rectangular
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Connector, M12 × 1
Housing Material Metal, GD-AlSi 12
Mounting Flush
Operating Voltage 10…30 VDC
Output Function NO contact, PNP
Protection Class IP67
Rated Switching Distance 20 mm
Special Feature uprox+, Factor 1, Resistant to magnetic fields
Switching Frequency 0.250 kHz

Specifications

SKUCS1156545
MPNBI20U-CA40-AP6X2-H1141 W/BS2.1
Alternate Part #1627290
UPC/EAN4047101080636
