Turck NI20U-TS12-AP6X2
SKU: CS3814093MPN: NI20U-TS12-AP6X2Alternate Part #: 1646647UPC/EAN: 4047101340242
1646647 - UPROX, RECT., DC, CABLE
$315.13
UnitAvailable on backorder
Product Details
Inductive Sensor
Detection of Small and Fast Tube-guided Parts
- Rectangular, height 12 mm
- Plastic, PBT‐GF30‐V0
- Resistant to magnetic fields
- Factor 1 for all metals
- High sensitivity for detection of small parts
- Output pulse length min. 100 ms
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- Cable connection
Attributes
| Ambient Temperature | -25…+70 °C |

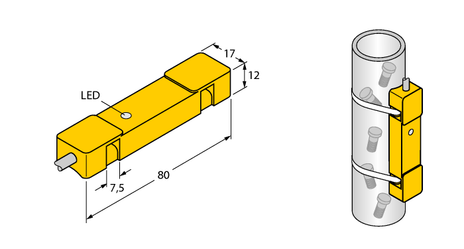

| Construction Size | 80 x 17 x 12 mm, TS12 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Cable |
| Housing Material | Plastic, PBT-GF30-V0 |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP68 |
| Rated Switching Distance | 20 mm |
| Special Feature | uprox+, Factor 1, Sn +, Resistant to magnetic fields |
| Switching Frequency | 0.0080 kHz |
Specifications
| SKU | CS3814093 |
|---|---|
| MPN | NI20U-TS12-AP6X2 |
| Alternate Part # | 1646647 |
| UPC/EAN | 4047101340242 |
