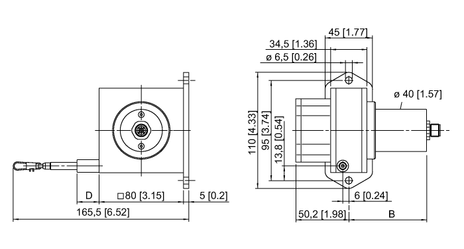

Turck DW1000-110-7E-H1441
SKU: CS3800471MPN: DW1000-110-7E-H1441Alternate Part #: 1544540UPC/EAN: 4047101256857
1544540 - DRAW WIRE
$1,773.36
UnitAvailable on backorder
Product Details
Draw-Wire
- Measuring range up to 1000mm
- M12 connector
- Protection class: IP65 (Encoder)
- Analog output, 4…20 mA
- Supply voltage 12…30 VDC
Attributes
| Ambient Temperature | -20…+60 °C |
| Current Output | 4…20 mA |
| Customs Tariff Number | 90318080000.0000 |
| Design | Draw Wire |
| Ecl Ss Code V5 1 4 | 27270790 -/- Sensor for length, path (not classified) |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Titanium anodized aluminium |
| Measuring Range | 1000 mm [39.37 in] |
| Operating Voltage | 12…30 VDC |
| Output Function | Analog output |
| Protection Class | IP65 |
Specifications
| SKU | CS3800471 |
|---|---|
| MPN | DW1000-110-7E-H1441 |
| Alternate Part # | 1544540 |
| UPC/EAN | 4047101256857 |
You may also like
Turck DW1000-110-8C-H1441
$1,773.36UnitTurck DW2000-110-7E-H1441
$1,773.36Unit
Turck DW500-70-7E-H1441
$1,511.26UnitTurck DW2000-110-8C-H1441
$1,773.36Unit
Turck DW8000-135-7E-H1441
$3,419.47UnitTurck DW20000-135-7E-H1441
$4,440.75UnitTurck DW1000-110-7E-CA
$1,883.68UnitTurck DW3000-110-7E-H1441
$1,931.17Unit

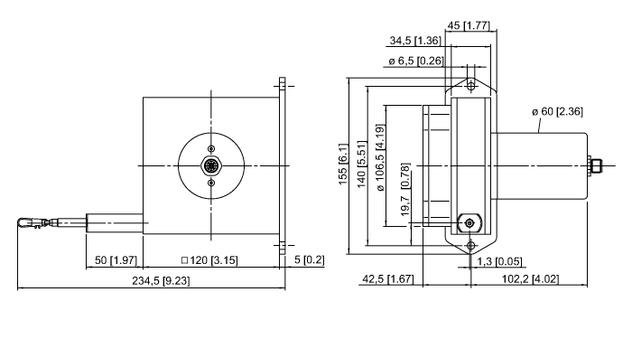

Turck DW6000-155-8C-H1441
$2,269.74Unit

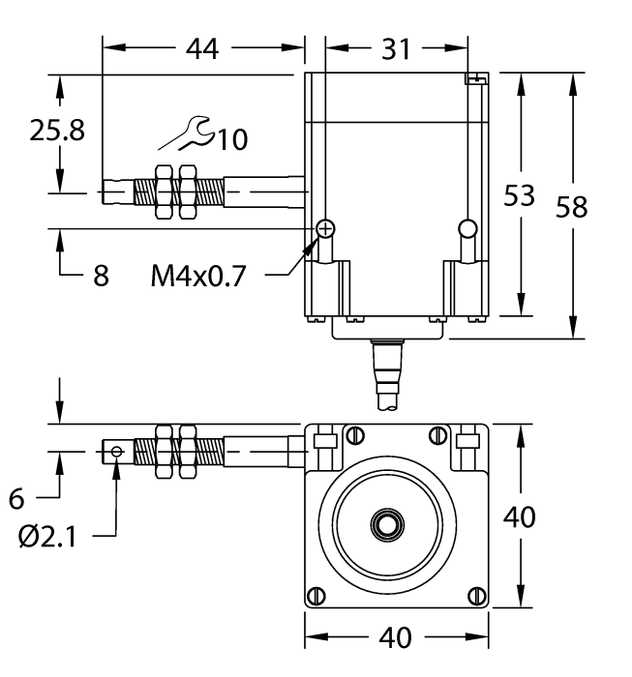

Turck DW1000-55-7F-CA
