Turck BSV4140-0/16
SKU: CS3793913MPN: BSV4140-0/16Alternate Part #: 6914541UPC/EAN: 4047101510843
6914541 - FIELD WIREABLE,⅞IN.MINIFAST,
$76.49
UnitAvailable on backorder
Product Details

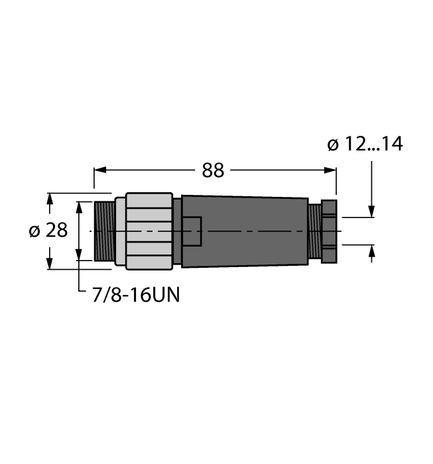

Field-Wireable Connector
⅞″ Male, Straight
- For use in PROFIBUS-PA and FOUNDATION fieldbus applications
- Screw-clamp terminal
- Stainless steel coupling nut
- 4-pin
- PG16 screw-in thread
- Cable feedthrough 12.0…14.0 mm
Attributes
| Acceptable Cable Diameter | 12…14 mm |
| Application | Data |
| Connection Mode | Screw/clamp connection |
| Connector A | Male, ⅞″-16 UN, Straight |
| Core Cross Section Clamping Ability | 0.14…1 mm² |
| Coupling Nut Screw Material | Stainless Steel, 1.4404, Passivated |
| Current | 9 A |
| Customs Tariff Number | 85366990990.0000 |
| Ecl Ss Code V5 1 4 | 27279201 -/- Connectivity (accessories sensors) |
| Fieldbus Protocol | PROFIBUS-PA |
| Housing Material | Plastic, PA |
| Mounting Thread | PG16 |
| Number Of Contacts | 4 |
| Voltage | 250 V |
Specifications
| SKU | CS3793913 |
|---|---|
| MPN | BSV4140-0/16 |
| Alternate Part # | 6914541 |
| UPC/EAN | 4047101510843 |
