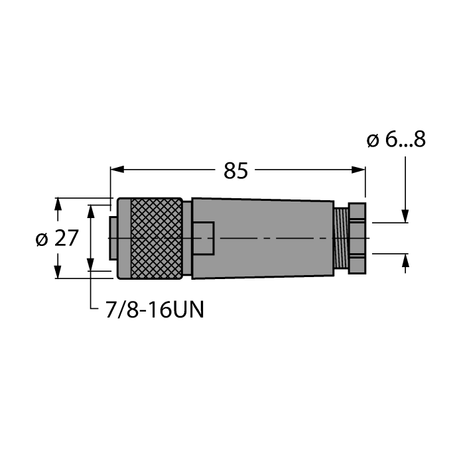

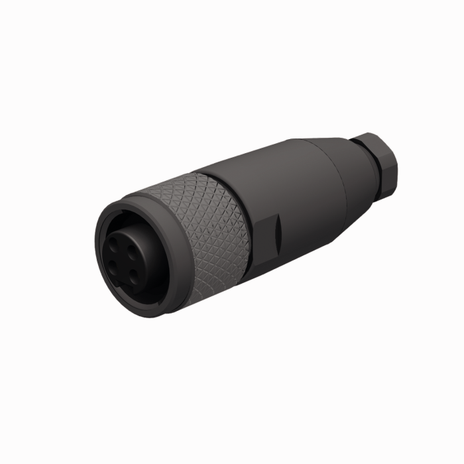

Turck BK4140-0/9
SKU: CS3790331MPN: BK4140-0/9Alternate Part #: 6914551
6914551 - FIELD WIREABLE,⅞IN.MINIFAST,
$62.15
UnitAvailable on backorder
Product Details
Field-Wireable Connector
⅞″ Female, Straight
- For use in PROFIBUS-PA and FOUNDATION fieldbus applications
- Screw-clamp terminal
- Anodized aluminum coupling nut
- 4-pin
- PG9 screw-in thread
- Cable feedthrough 6.0…8.0 mm
Attributes
| Acceptable Cable Diameter | 6…8 mm |
| Application | Signal, Data |
| Connection Mode | Screw/clamp connection |
| Connector A | Female, ⅞″-16 UN, Straight |
| Core Cross Section Clamping Ability | 0.14…1 mm² |
| Coupling Nut Screw Material | Aluminum, Al, Anodized |
| Current | 9 A |
| Customs Tariff Number | 85366990990.0000 |
| Ecl Ss Code V5 1 4 | 27279201 -/- Connectivity (accessories sensors) |
| Fieldbus Protocol | FOUNDATION fieldbus, PROFIBUS-PA |
| Housing Material | Plastic, PA |
| Mounting Thread | PG9 |
| Number Of Contacts | 4 |
| Voltage | 250 V |
Specifications
| SKU | CS3790331 |
|---|---|
| MPN | BK4140-0/9 |
| Alternate Part # | 6914551 |
You may also like

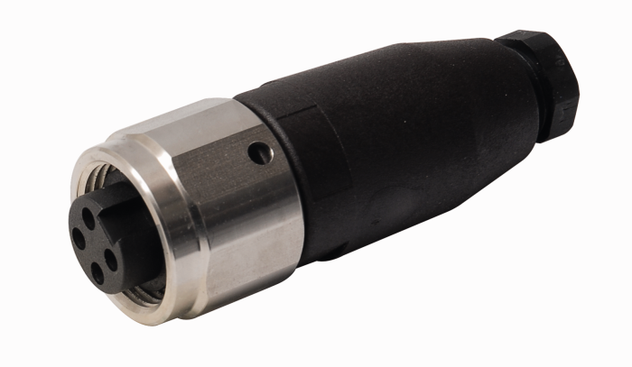

Turck BKV4140-0/9
$79.17Unit

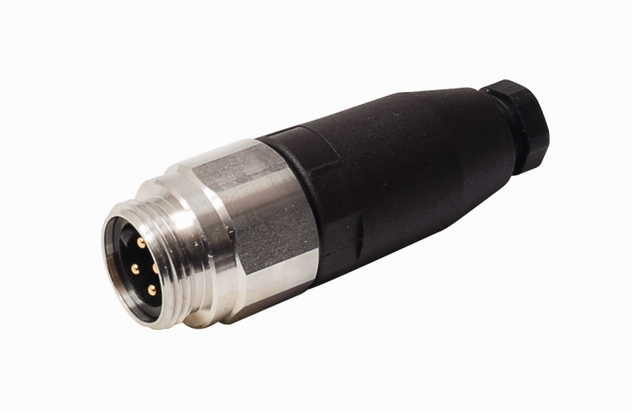

Turck BSV4140-0/9
$79.17Unit

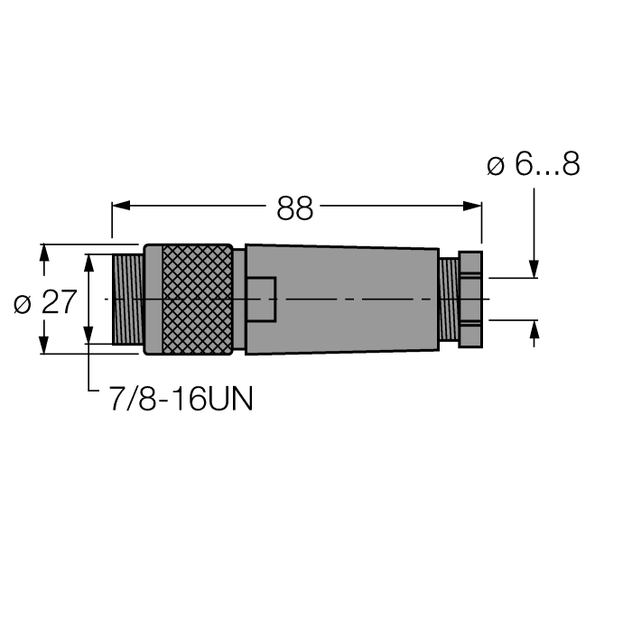

Turck BS4140-0/9
$62.15UnitTurck BKV4140-0/16
$79.17Unit

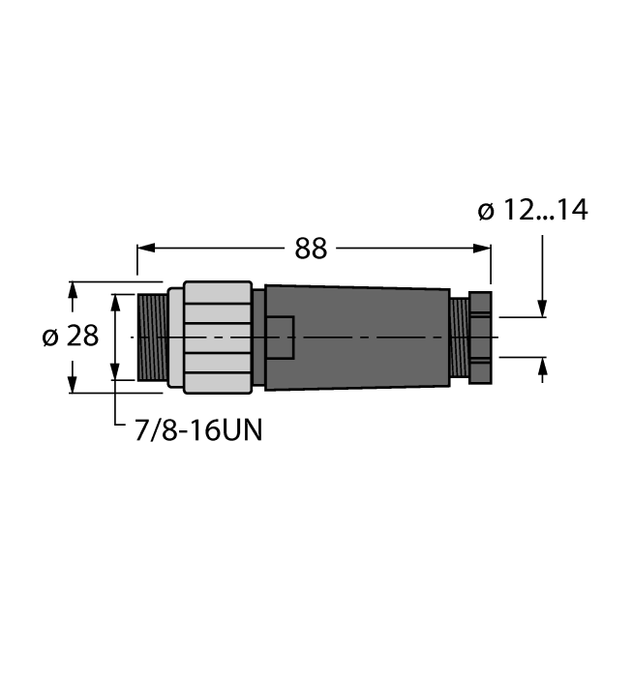

Turck BSV4140-0/16
