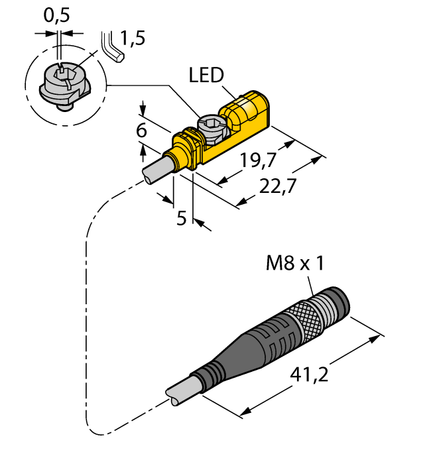

Turck BIM-UNTK-AP7X-0.3-PSG3M
SKU: CS3790324MPN: BIM-UNTK-AP7X-0.3-PSG3MAlternate Part #: 4686011UPC/EAN: 4047101276916
4686011 - TRANS., RECT., DC, PIGTAIL M8
$87.40
UnitAvailable on backorder
Product Details
Magnetic Field Sensor
Compact design for small hydraulic cylinders
- For T-groove cylinders without mounting accessories
- Optional accessories for mounting on other cylindrical housings.
- One-hand mounting possible
- Tool for fine adjustments and stopper directly mountable on the sensor
- Stable mounting
- Magneto-resistive sensor
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- Pigtail with male end, M8 x 1
Attributes
| Ambient Temperature | -25…+70 °C |

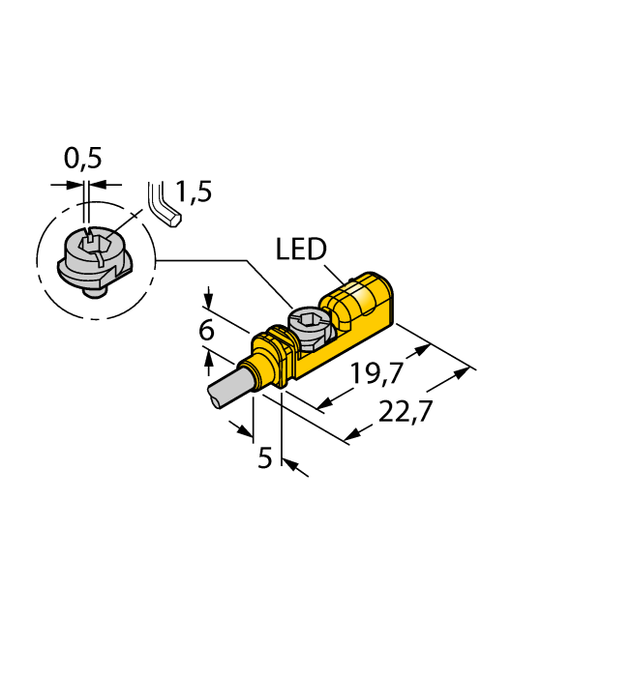

| Construction Size | 19.7 x 5 x 6 mm, UNTK |
| Customs Tariff Number | 85365019900.0000 |
| Cylindrical Design | Dovetail groove cylinder, T-groove cylinder, Round cylinder, Tie-rod cylinder |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270104 -/- Magnetic inductive proximity switch |
| Electrical Connection | Cable with connector, M8 × 1 |
| Housing Material | Plastic, PP |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP68 |
Specifications
| SKU | CS3790324 |
|---|---|
| MPN | BIM-UNTK-AP7X-0.3-PSG3M |
| Alternate Part # | 4686011 |
| UPC/EAN | 4047101276916 |
You may also like
Turck BIM-UNTK-AP6X-0.3-PSG3M
$120.36Unit

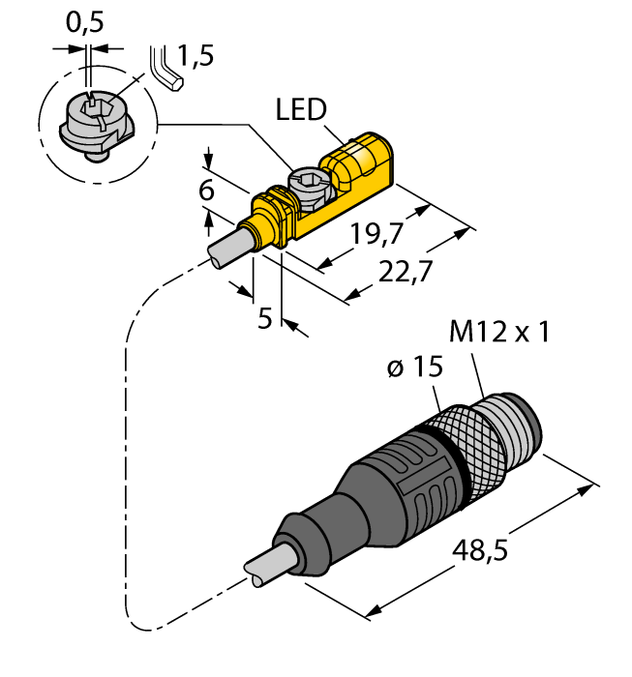

Turck BIM-UNTK-AP7X-0.3-RS4
