Turck BIM-PSM-AP6X-0.2-RS4T W/O BKT
SKU: CS3790064MPN: BIM-PSM-AP6X-0.2-RS4T W/O BKTAlternate Part #: 4625490
4625490 - TRANS., RECT., DC, PIGTAIL M12
$136.99
UnitAvailable on backorder
Product Details
Magnetic Field Sensor
For Pneumatic Cylinders
- Rectangular, height 18.5 mm
- Front active face
- Metal/plastic, Al/PA12-GF30
- Magnetic-inductive sensor
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- Pigtail with male end, M12 x 1
Attributes
| Ambient Temperature | -25…+70 °C |

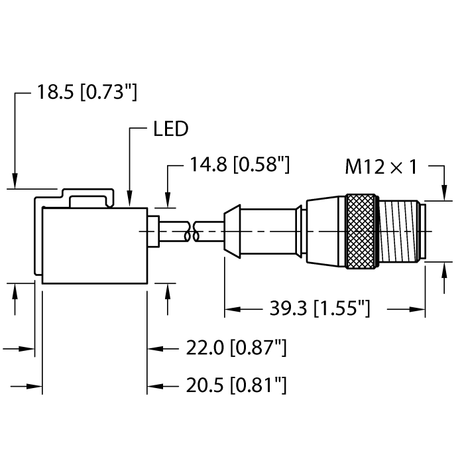

| Construction Size | 22 x 14 x 18.5 mm, PSM |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270104 -/- Magnetic inductive proximity switch |
| Electrical Connection | Cable with connector, M12 × 1 |
| Housing Material | Metal/plastic, Al/PA12-GF30 |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP67 |
Specifications
| SKU | CS3790064 |
|---|---|
| MPN | BIM-PSM-AP6X-0.2-RS4T W/O BKT |
| Alternate Part # | 4625490 |
