Turck BIM-NST-AP6X-0.2-PSG3M W/O BKT
SKU: CS3790053MPN: BIM-NST-AP6X-0.2-PSG3M W/O BKTAlternate Part #: 46856000
46856000 - TRANS., RECT., DC, PIGTAIL M8
$156.14
UnitAvailable on backorder
Product Details
Magnetic Field Sensor
For Pneumatic Cylinders
- Plastic, PA12-GF30
- Magnetic-inductive sensor
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- Pigtail with male end, M8 x 1
Attributes
| Ambient Temperature | -25…+70 °C |

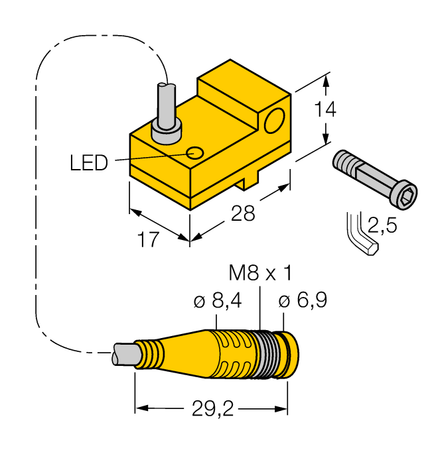

| Construction Size | 28 x 17 x 14 mm, NST |
| Cylindrical Design | T-groove cylinder, Dovetail groove cylinder, Profile cylinder |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270104 -/- Magnetic inductive proximity switch |
| Electrical Connection | Cable with connector, M8 × 1 |
| Housing Material | Plastic, PA12-GF30 |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP67 |
Specifications
| SKU | CS3790053 |
|---|---|
| MPN | BIM-NST-AP6X-0.2-PSG3M W/O BKT |
| Alternate Part # | 46856000 |
