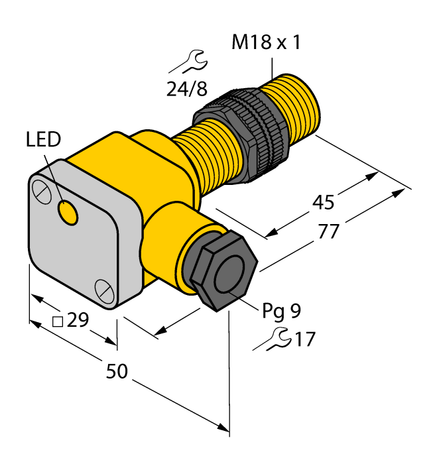

Turck BI5U-P18SK-AP6X
SKU: CS3789657MPN: BI5U-P18SK-AP6XAlternate Part #: 1635700UPC/EAN: 4047101131314
1635700 - UPROX, BARREL, DC, TERMINALS
$196.81
UnitAvailable on backorder
Product Details
Inductive Sensor
- Threaded barrel, M18 x 1
- Plastic, PA12-GF30
- Factor 1 for all metals
- Protection class IP68
- Resistant to magnetic fields
- Extended temperature range
- High switching frequency
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- Terminal chamber
Attributes
| Ambient Temperature | -30…+85 °C |
| Construction Size | M18 x 1 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Terminal chamber |
| Housing Material | Plastic, PA12-GF30 |
| Mounting | Flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP68 |
| Rated Switching Distance | 5 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields |
| Switching Frequency | 3.0 kHz |
Specifications
| SKU | CS3789657 |
|---|---|
| MPN | BI5U-P18SK-AP6X |
| Alternate Part # | 1635700 |
| UPC/EAN | 4047101131314 |
