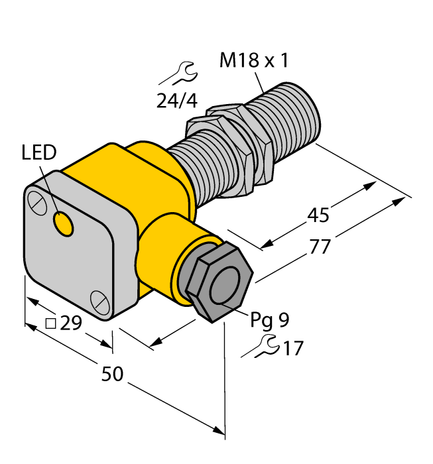

Turck BI5U-EG18SK-AP6X
SKU: CS3789627MPN: BI5U-EG18SK-AP6XAlternate Part #: 1635400UPC/EAN: 4047101131178
1635400 - UPROX, BARREL, DC, TERMINALS
$165.38
UnitAvailable on backorder
Product Details
Inductive Sensor
- Threaded barrel, M18 x 1
- Stainless steel, 1.4301
- Factor 1 for all metals
- Resistant to magnetic fields
- Extended temperature range
- High switching frequency
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- Terminal chamber
Attributes
| Ambient Temperature | -30…+85 °C |
| Construction Size | M18 x 1 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Terminal chamber |
| Housing Material | Stainless steel, 1.4301 (AISI 304) |
| Mounting | Flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP67 |
| Rated Switching Distance | 5 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields |
| Switching Frequency | 2.50 kHz |
Specifications
| SKU | CS3789627 |
|---|---|
| MPN | BI5U-EG18SK-AP6X |
| Alternate Part # | 1635400 |
| UPC/EAN | 4047101131178 |
