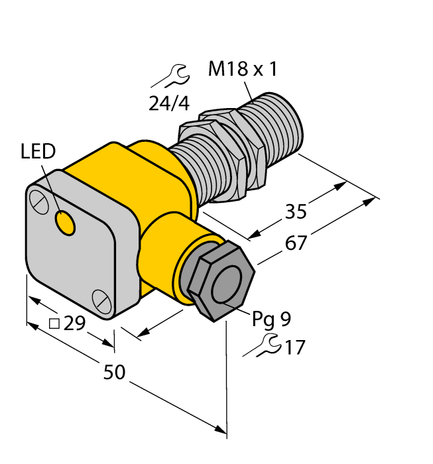

Turck BI5-G18SK-Y1X
SKU: CS3789494MPN: BI5-G18SK-Y1XAlternate Part #: 40160UPC/EAN: 4047101091328
40160 - FERRITE, BARREL, NAMUR, TERMINAL
$160.50
UnitAvailable on backorder
Product Details
Inductive Sensor
- M18 × 1 threaded barrel
- Chrome-plated brass
- DC 2-wire, nom. 8.2 VDC
- Output acc. to DIN EN 60947-5-6 (NAMUR)
- Terminal chamber
- ATEX category II 1 G, Ex zone 0
- ATEX category II 1 D, Ex zone 20
- SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 with HFT0
- SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1
Attributes
| Ambient Temperature | -25…+70 °C |
| Approvals | ATEX II 1 G, ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc |
| Construction Size | M18 x 1 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Terminal chamber |
| Housing Material | Metal, CuZn, Chrome-plated |
| Mounting | Flush |
| Output Function | NAMUR |
| Protection Class | IP67 |
| Rated Switching Distance | 5 mm |
| Switching Frequency | 1.0 kHz |
Specifications
| SKU | CS3789494 |
|---|---|
| MPN | BI5-G18SK-Y1X |
| Alternate Part # | 40160 |
| UPC/EAN | 4047101091328 |
