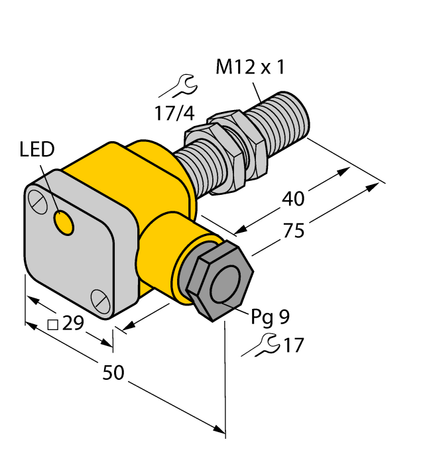

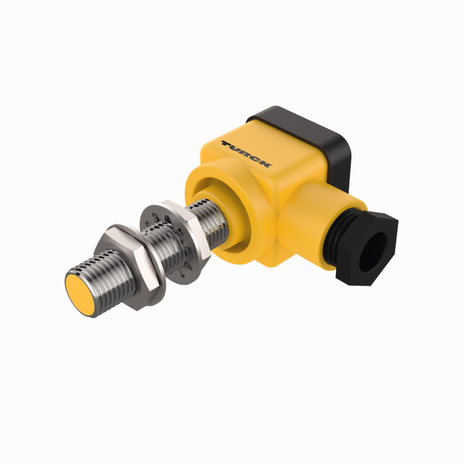

Turck BI2-G12SK-Y1X/40L

SKU: CS3788612MPN: BI2-G12SK-Y1X/40LAlternate Part #: 4011001UPC/EAN: 4047101090864

4011001 - FERRITE, BARREL, NAMUR, TERMIN

Turck BI2-EG12SK-AD4X, BI2-G12SK-AN6X2, BI2-G12SK-AP6X2, BI2-G12SK-Y1X/40L, BI3U-EG12SK-AP6X, BIM-G12SK-AP4X/S235
Turck BI2-G12SK-AN6X2, BI2-G12SK-AP6X2, BI2-G12SK-Y1X/40L
Turck BI2-EG12SK-AD4X, BI2-G12SK-AN6X2, BI2-G12SK-AP6X2, BI2-G12SK-Y1X/40L, BI3U-EG12SK-AP6X, BIM-G12SK-AP4X/S235
Turck BI2-G12SK-AN6X2, BI2-G12SK-AP6X2, BI2-G12SK-Y1X/40L
$129.07
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

  • Threaded barrel, M12 x 1
  • Chrome-plated brass
  • DC 2-wire, nom. 8.2 VDC
  • Output acc. to DIN EN 60947-5-6 (NAMUR)
  • Terminal chamber
  • ATEX category II 1 G, Ex zone 0
  • ATEX category II 1 D, Ex zone 20
  • SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 with HFT0
  • SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1

Attributes

Ambient Temperature -25…+70 °C
Approvals ATEX II 1 G, ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc
Construction Size M12 x 1
Customs Tariff Number 85365019900.0000
Design Threaded barrel
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Terminal chamber
Housing Material Metal, CuZn, Chrome-plated
Mounting Flush
Output Function NAMUR
Protection Class IP67
Rated Switching Distance 2 mm
Switching Frequency 5.0 kHz

Specifications

SKUCS3788612
MPNBI2-G12SK-Y1X/40L
Alternate Part #4011001
UPC/EAN4047101090864
