Turck BI3U-EMT08-AP6X-H1341/S1589
SKU: CS3789231MPN: BI3U-EMT08-AP6X-H1341/S1589Alternate Part #: 46021560UPC/EAN: 4047101543414
46021560 - UPROX, BARREL, DC, CON. M12
$211.90
UnitAvailable on backorder
Product Details

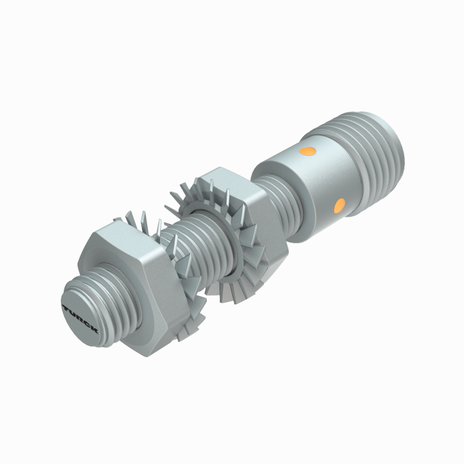

Inductive Sensor
With WeldGuard™ Coating
- Threaded barrel, M8 x 1
- Stainless steel, PTFE-coated
- Factor 1 for all metals
- Protection class IP68
- Resistant to magnetic fields
- Large switching distance
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- M12 x 1 male connector
Attributes
| Ambient Temperature | 0…+60 °C |

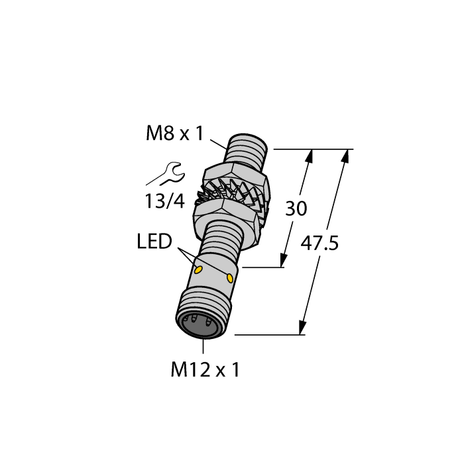

| Construction Size | M8 x 1 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Stainless steel, 1.4427 SO, PTFE-coated |
| Mounting | Flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP68 |
| Rated Switching Distance | 3 mm |
| Special Feature | uprox3, Resistant to magnetic fields, Factor 1, PTFE-coated |
| Switching Frequency | 1.0 kHz |
Specifications
| SKU | CS3789231 |
|---|---|
| MPN | BI3U-EMT08-AP6X-H1341/S1589 |
| Alternate Part # | 46021560 |
| UPC/EAN | 4047101543414 |
