Turck BI10U-M30-VN4X
SKU: CS3788087MPN: BI10U-M30-VN4XAlternate Part #: 1582303UPC/EAN: 4047101126563
1582303 - UPROX, BARREL, DC, CABLE
$178.75
UnitAvailable on backorder
Product Details
Inductive Sensor

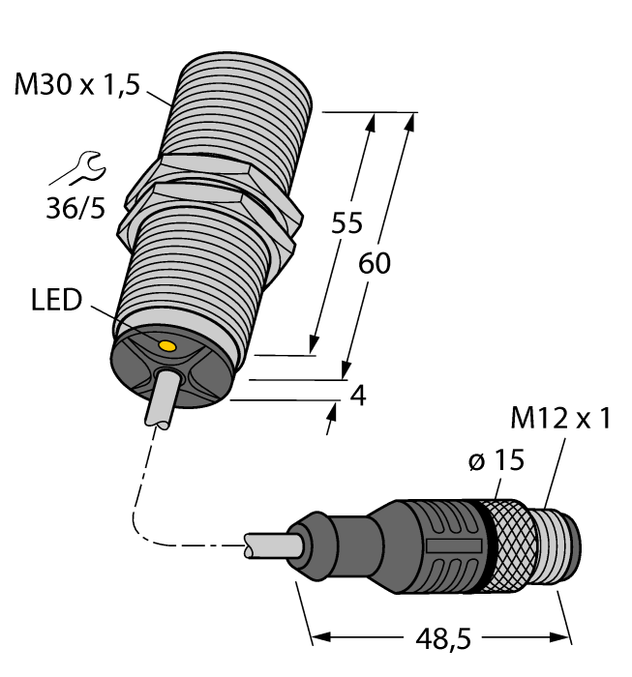

- M30 × 1.5 threaded tube
- Chrome-plated brass
- Factor 1 for all metals
- Protection class IP68
- Resistant to magnetic fields
- Extended temperature range
- High switching frequency
- DC 4-wire, 10…65 VDC
- Changeover contact, NPN output
- Cable connection
Attributes
| Ambient Temperature | -30…+85 °C |
| Construction Size | M30 x 1.5 |
| Customs Tariff Number | 85365080900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Cable |
| Housing Material | Metal, CuZn, Chrome-plated |
| Mounting | Flush |
| Operating Voltage | 10…65 VDC |
| Output Function | Complementary contact, NPN |
| Protection Class | IP68 |
| Rated Switching Distance | 10 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields |
| Switching Frequency | 1.0 kHz |
Specifications
| SKU | CS3788087 |
|---|---|
| MPN | BI10U-M30-VN4X |
| Alternate Part # | 1582303 |
| UPC/EAN | 4047101126563 |
