All ProductsTurck

Turck BI10U-M30-AN6X-0.2-RS4T

SKU: CS3788084MPN: BI10U-M30-AN6X-0.2-RS4TAlternate Part #: 1636191

1636191 - UPROX, BARREL, DC, PIGTAIL M12

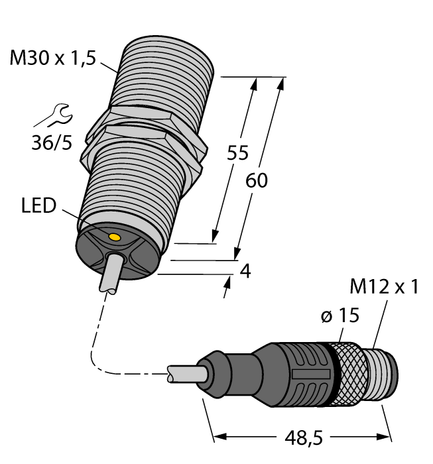

Turck BI10U-EM30-AN6X-0.2-RS4T, BI10U-M30-AN6X-0.2-RS4T, BI10U-M30-AP6X-0.2-RS4T, BI10U-MT30-AD4X-0.3-RS4.23/XOR, BI15-EM30-AN45XLD-0.2-RS4T, BI15-EM30-AP45XLD-0.2-RSV4T/S100
$175.82
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

  • M30 × 1.5 threaded tube
  • Chrome-plated brass
  • Factor 1 for all metals
  • Protection class IP68
  • Resistant to magnetic fields
  • Extended temperature range
  • High switching frequency
  • DC 3-wire, 10…30 VDC
  • NO contact, NPN output
  • Pigtail with M12 × 1 connector

Attributes

Ambient Temperature -30…+85 °C
Construction Size M30 x 1.5
Design Threaded barrel
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Cable with connector, M12 × 1
Housing Material Metal, CuZn, Chrome-plated
Mounting Flush
Operating Voltage 10…30 VDC
Output Function NO contact, NPN
Protection Class IP68
Rated Switching Distance 10 mm
Special Feature uprox+, Factor 1, Resistant to magnetic fields
Switching Frequency 1.0 kHz

Specifications

SKUCS3788084
MPNBI10U-M30-AN6X-0.2-RS4T
Alternate Part #1636191
