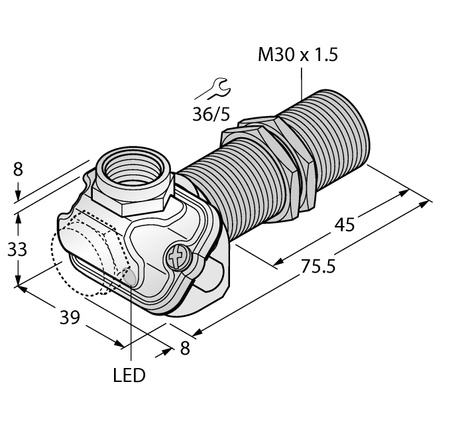

Turck BI10-EM30WDTC-Y1X

4012071 - FERRITE, BARREL, NAMUR, TERMIN

Inductive Sensor

With Increased Temperature Range

• Threaded barrel, M30 x 1.5
• Stainless steel, 1.4404

• For temperatures of -40 °C…+100 °C
• High protection class IP69K for harsh environments
• Special double-lip seal
• Protection against all common acidic and alkaline cleaning agents
• Suitable for applications in the food industry

• DC 2-wire, nom. 8.2 VDC
• Output acc. to DIN EN 60947-5-6 (NAMUR)
• Terminal chamber

• ATEX category II 1 G, Ex Zone 0 at temperatures up to +80 °C
• ATEX category II 2 G. Ex Zone 1
• ATEX category II 1 D, Ex Zone 20 for temperatures from -25 °C to +70 °C
• SIL 2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0
• SIL 3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HTF1
