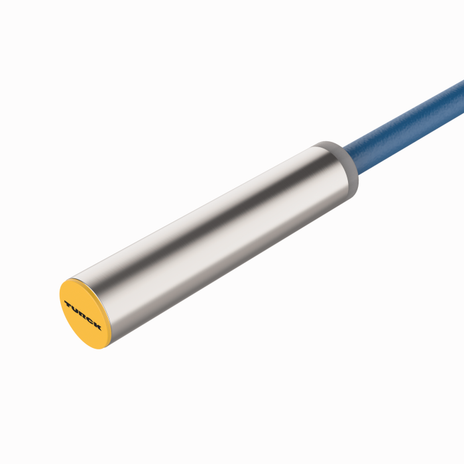

Turck BI1.5-H6.5-Y1
SKU: CS3787891MPN: BI1.5-H6.5-Y1Alternate Part #: 10050UPC/EAN: 4047101144680
10050 - FERRITE, BARREL, NAMUR, CABLE
$106.97
Unit6 in stock
Product Details
Inductive Sensor
- Ø 6.5 mm, smooth barrel
- Stainless steel, 1.4404
- DC 2-wire, nom. 8.2 VDC
- Output acc. to DIN EN 60947-5-6 (NAMUR)
- Cable connection
- ATEX category II 1 G, Ex zone 0
- ATEX category II 1 D, Ex zone 20
- SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 with HFT0
- SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1
Attributes
| Ambient Temperature | -25…+70 °C |
| Approvals | ATEX II 1 G, ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc |

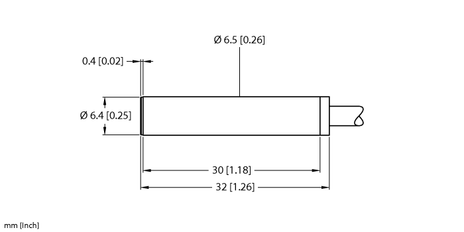

| Construction Size | Ø 6.5 mm |
| Customs Tariff Number | 85365019900.0000 |
| Design | Smooth barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Cable |
| Housing Material | Stainless steel, 1.4427 SO |
| Mounting | Flush |
| Output Function | NAMUR |
| Protection Class | IP67 |
| Rated Switching Distance | 1.5 mm |
| Switching Frequency | 5.0 kHz |
Specifications
| SKU | CS3787891 |
|---|---|
| MPN | BI1.5-H6.5-Y1 |
| Alternate Part # | 10050 |
| UPC/EAN | 4047101144680 |
