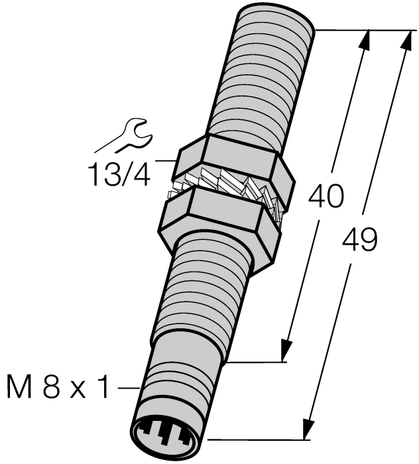

Turck BI1.5-EG08-Y1-V1131
SKU: CS2450462MPN: BI1.5-EG08-Y1-V1131Alternate Part #: 1003530UPC/EAN: 4047101144246
1003530 - FERRITE, BARREL, NAMUR, CON. M
$92.99
UnitAvailable on backorder
Product Details
Inductive Sensor
- Threaded barrel, M8 x 1
- Stainless steel, 1.4427 SO
- DC 2-wire, nom. 8.2 VDC
- Output acc. to DIN EN 60947-5-6 (NAMUR)
- M8 x 1 male connector
- ATEX category II 1 G, Ex zone 0
- ATEX category II 1 D, Ex zone 20
- SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 with HFT0
- SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1
Attributes
| Ambient Temperature | -25…+70 °C |
| Approvals | ATEX II 1 G, ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc |
| Construction Size | M8 x 1 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M8 × 1 |
| Housing Material | Stainless steel, 1.4427 SO |
| Mounting | Flush |
| Output Function | NAMUR |
| Protection Class | IP67 |
| Rated Switching Distance | 1.5 mm |
| Switching Frequency | 5.0 kHz |
Specifications
| SKU | CS2450462 |
|---|---|
| MPN | BI1.5-EG08-Y1-V1131 |
| Alternate Part # | 1003530 |
| UPC/EAN | 4047101144246 |
You may also like
Turck BI1.5-EG08K-Y1-V1131
$92.99Unit
Turck BI1.5-EG08-Y1-H1341
$106.97Unit

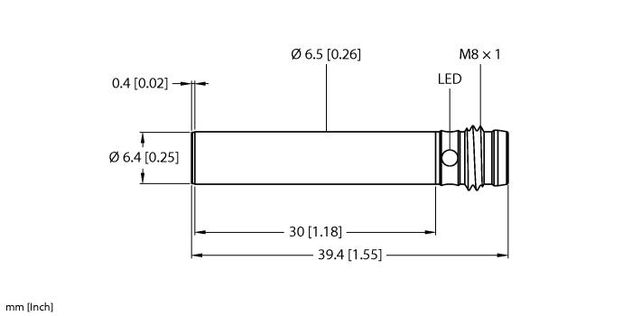

Turck BI1.5-H6.5-Y1-V1131
$93.08Unit
Turck BI1.5-EG08-Y1
$106.97UnitTurck BI1.5-EG08-Y1-H1341/S100
$157.67Unit
Turck NI3-EG08-Y1-V1130
$93.39Unit
Turck BI1.5-EG08K-Y1-H1341
$106.97Unit
Turck NI3-EG08-Y1-H1341
$111.14Unit
Turck BI1.5-EG08-Y1 7M
$106.97Unit

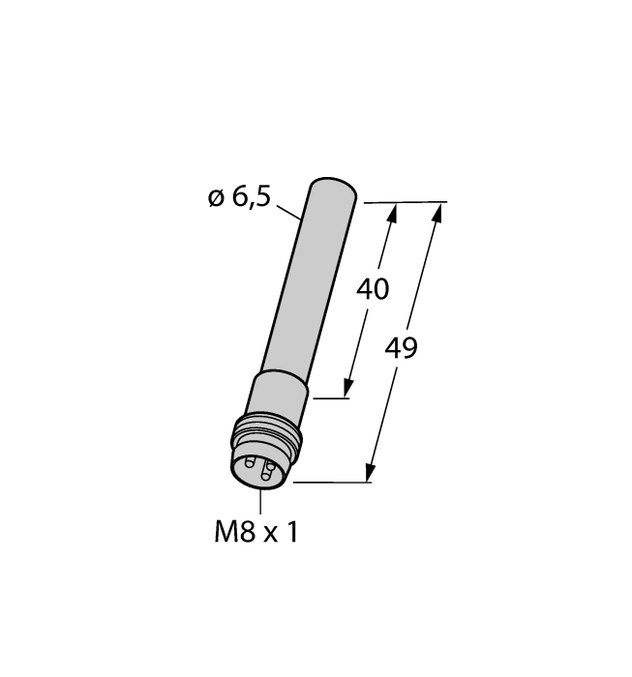

Turck BI1.5-EH6.5-Y1-V1130
