All ProductsTurck

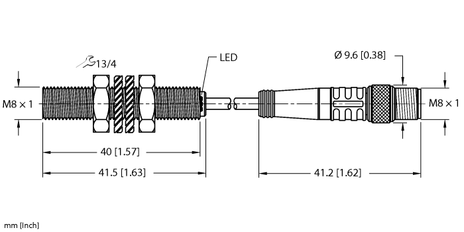

Turck BI1.5-EG08-AP6X-0.2-PSG3M

SKU: CS3787768MPN: BI1.5-EG08-AP6X-0.2-PSG3MAlternate Part #: 4602298

4602298 - FERRITE, BARREL, DC, PIGTAIL M

Turck BI1.5-EG08-AP6X-0.2-PSG3M, BI1.5-EG08-AP6X-2-PSG3M, BI2-EG08-AN6X-0.2-PSG3M, BI2-EG08-AP6X-0.2-PSG3M, BI2-EG08-AP6X-0.2-PSG3M/S1589
$151.79
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

  • Gewinderohr, M8 x 1
  • Edelstahl, 1.4305 (AISI 303)
  • DC 3-wire, 10…30 VDC
  • NO contact, PNP output
  • Pigtail with male end M8 x 1

Attributes

Ambient Temperature -25…+70 °C
Construction Size M8 x 1
Design Threaded barrel
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Cable with connector, M8 × 1
Housing Material Stainless steel, 1.4305 (AISI 303)
Mounting Flush
Operating Voltage 10…30 VDC
Output Function NO contact, PNP
Protection Class IP67
Rated Switching Distance 1.5 mm
Switching Frequency 3.0 kHz

Specifications

SKUCS3787768
MPNBI1.5-EG08-AP6X-0.2-PSG3M
Alternate Part #4602298
