Turck BC20-Q20-VP4X2-H1141
SKU: CS3787364MPN: BC20-Q20-VP4X2-H1141Alternate Part #: 2530121UPC/EAN: 4047101090062
2530121 - C, RECT., GEN., GEN.
$233.81
UnitAvailable on backorder
Product Details
Capacitive Sensor

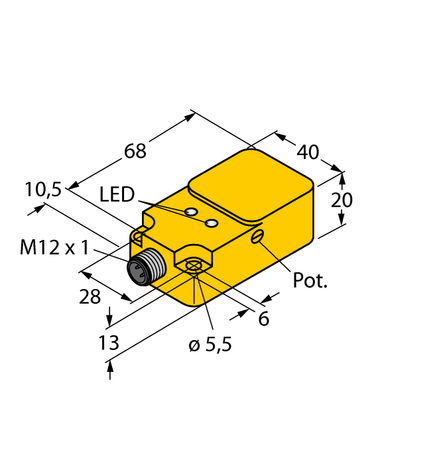

- Rectangular, height 20mm
- Active face on top
- Plastic, PBT‐GF30‐V0
- Fine adjustment via potentiometer
- DC 4-wire, 10…65 VDC
- Complementary contact, PNP output
- M12 × 1 connector
Attributes
| Ambient Temperature | -25…+70 °C |
| Approvals | UL |
| Construction Size | 68 x 40 x 20 mm, Q20 |
| Customs Tariff Number | 85365080900.0000 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270102 -/- Capacitive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Plastic, PBT-GF30-V0 |
| Output Function | Complementary contact, PNP |
| Protection Class | IP67 |
| Rated Switching Distance | 20 mm |
Specifications
| SKU | CS3787364 |
|---|---|
| MPN | BC20-Q20-VP4X2-H1141 |
| Alternate Part # | 2530121 |
| UPC/EAN | 4047101090062 |
