Turck B2N5H-Q20L60-2LI2-H1151
SKU: CS3787250MPN: B2N5H-Q20L60-2LI2-H1151Alternate Part #: 1534048UPC/EAN: 4047101228458
1534048 - 2-AXIS
$543.88
UnitAvailable on backorder
Product Details
Inclinometer
- Plastic, PC
- Zero point calibration +/‐ 2°
- Two analog outputs
- M12 x 1 male connector
Attributes
| Ambient Temperature | -30…+70 °C |

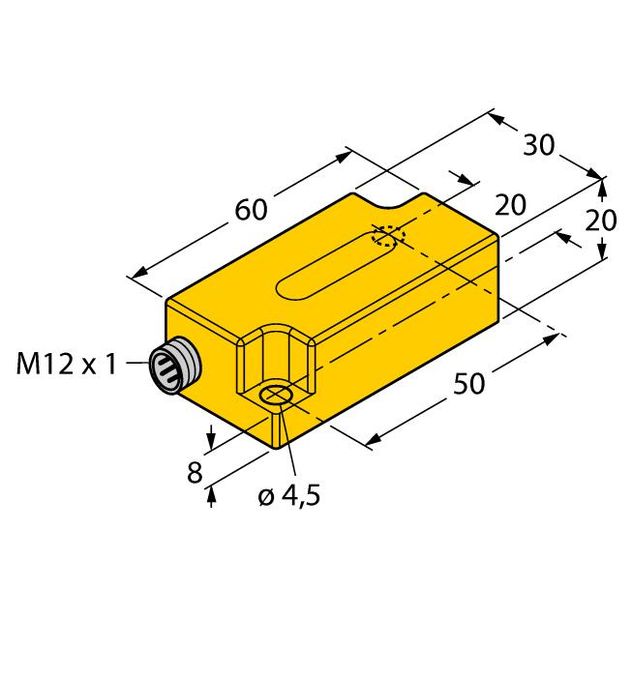

| Construction Size | 60 x 30 x 20 mm |
| Current Output | 4…20 mA |
| Customs Tariff Number | 90318080000.0000 |
| Ecl Ss Code V5 1 4 | 27279090 -/- Sensor technology (not classified) |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Plastic, PC |
| Measuring Principle | Acceleration |
| Measuring Range | -5…5° |
| Number Of Measuring Axes | 2.0000 |
| Operating Voltage | 10…30 VDC |
| Output Function | Analog output |
| Protection Class | IP68/IP69K |
Specifications
| SKU | CS3787250 |
|---|---|
| MPN | B2N5H-Q20L60-2LI2-H1151 |
| Alternate Part # | 1534048 |
| UPC/EAN | 4047101228458 |
