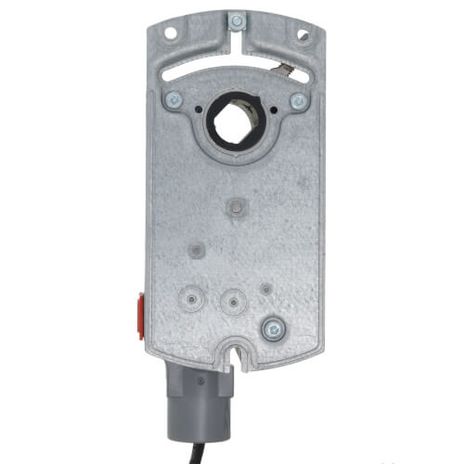

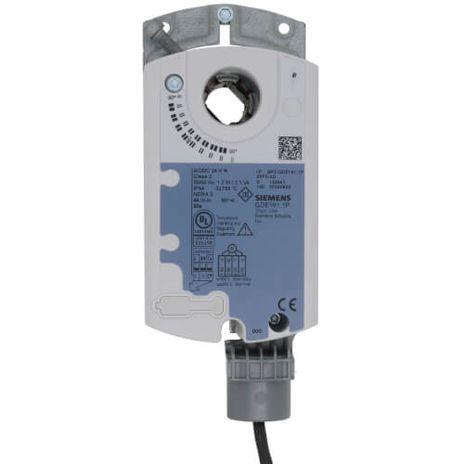

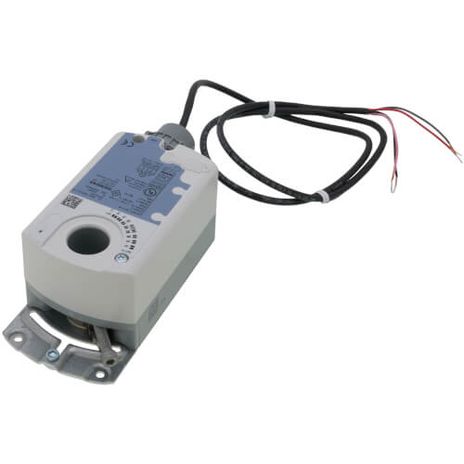

Siemens GDE146.1P
SKU: CS3748648MPN: GDE146.1P
Damper Actuator 44 lb-in,NSR,2PT/3PT,plenum,aux sw
$160.48
UnitAvailable on backorder
Product Details
Damper Actuator 44 lb-in 2-position/floating control signal, non-spring return, built in auxiliary switches, plenum rated for low torque VAV applications and small dampers.
Attributes
| Actuation Style | Rotary |
| Actuator Type | Non-spring return |
| Ambient Humidity Operation | 95 % r.h. |
| Ambient Temperature Operation | -32…55 °C; -25…130 ºF |
| Auxiliary Switch | Yes |
| Connection Cable | 18 AWG |
| Control Or Fire Smoke Type | Control Damper |
| Control Signal | 2-position;Floating control |
| Fail Safe | No |
| Frequency | 50/60 Hz |
| Material Housing | NEMA 2, IP54 per EN60529, durable plastic |
| Operating Voltage | 19.2…28.8 V24 V#AC/DC |
| Plenum Or Standard Rating | Plenum |
| Position Feedback | No |
| Positioning Time | 50 Hz:108 s;60 Hz:90 s |
| Power Consumption | 2.0 VA, 1.0 W |
| Supply Voltage | 24 VAC/DC |
| Torque | 44 lb-in |
Specifications
| SKU | CS3748648 |
|---|---|
| MPN | GDE146.1P |
