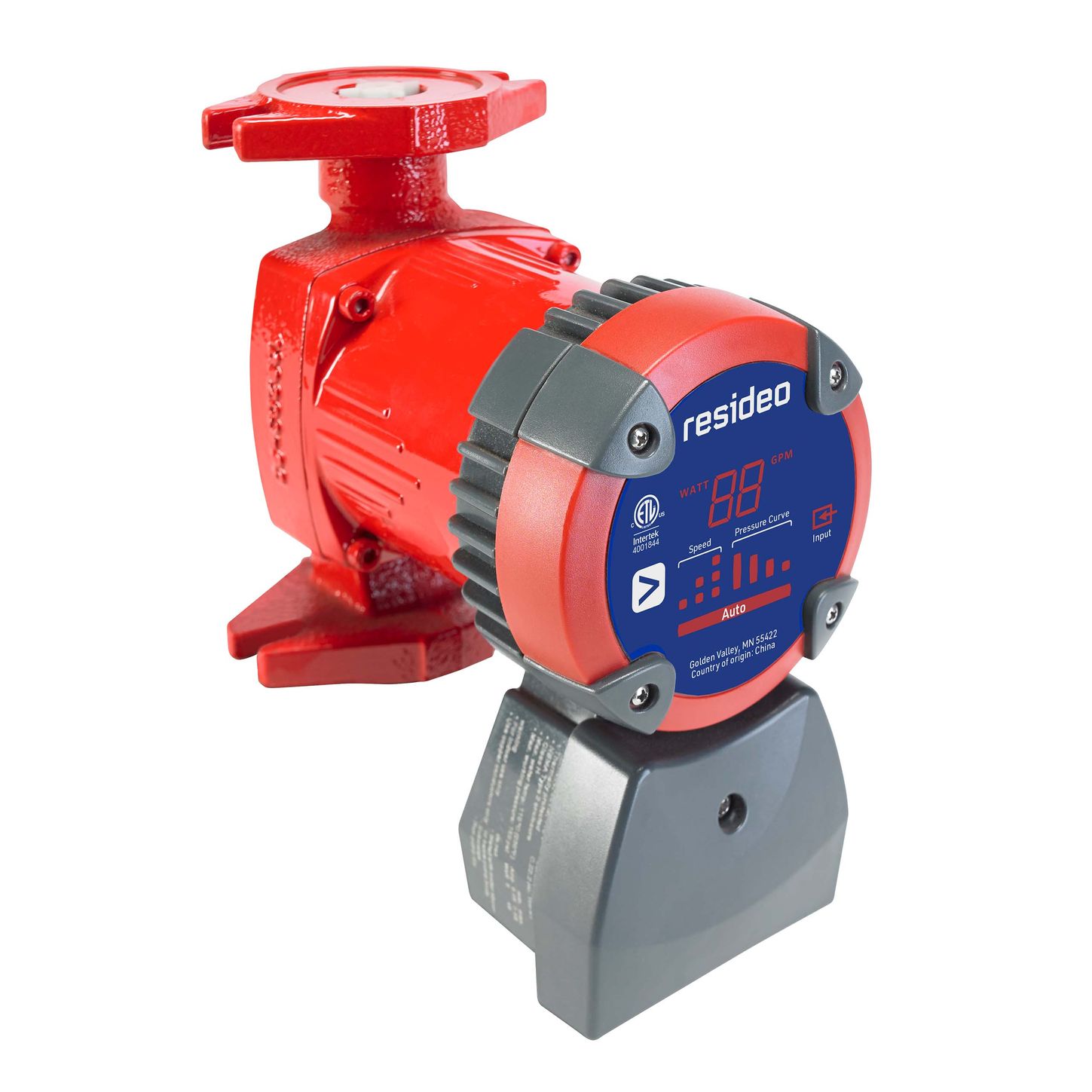

Resideo PCVF-ECM2020

Wet Rotor Universal ECM 120V Circulator

For greater efficiency that sets new energy installation specifications, Resideo has two variable speed circulating pump options – as well as fixed speed. This variable speed pump is made of cast iron for closed systems.

Product Features

• Five different modes of operation provide versatility to cover the performance of a wide range of fixed and variable speed circulators utilizing pressure responsive control.
• Quiet Operating ECM reduces energy consumption, operational noise and vibrations to help extend the life of the pump and eliminate callbacks.
• Separate Flow Check is sold as a standalone part so there is no need to stock a separate pump assembly.
• Certification: ETL listed for US and Canada (conforms to UL STD 778 certificated to CSA STD C.22.2 NO. 108-01).
• Built-in quality: Easy access to the terminal block for wiring, Large wiring chamber and front-mounted terminal block, Reliable and easy to install in the field, New pumps feature a 5-year warranty

Product Specifications

• Pump Casting: Cast Iron
• Max. Flow: GPM 20, LPM 75.7
• Max. Pressure Head: 20 ft.
• Connections: Bolt Hole Spacing 3-5/32”, Bolt Hole ½”
• Dimensions: 6.50” x 7.08” x 5.75” x 5.31” x 3.25”
