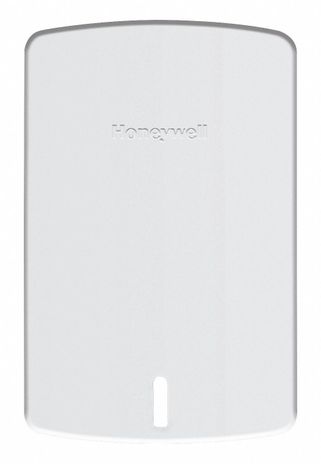

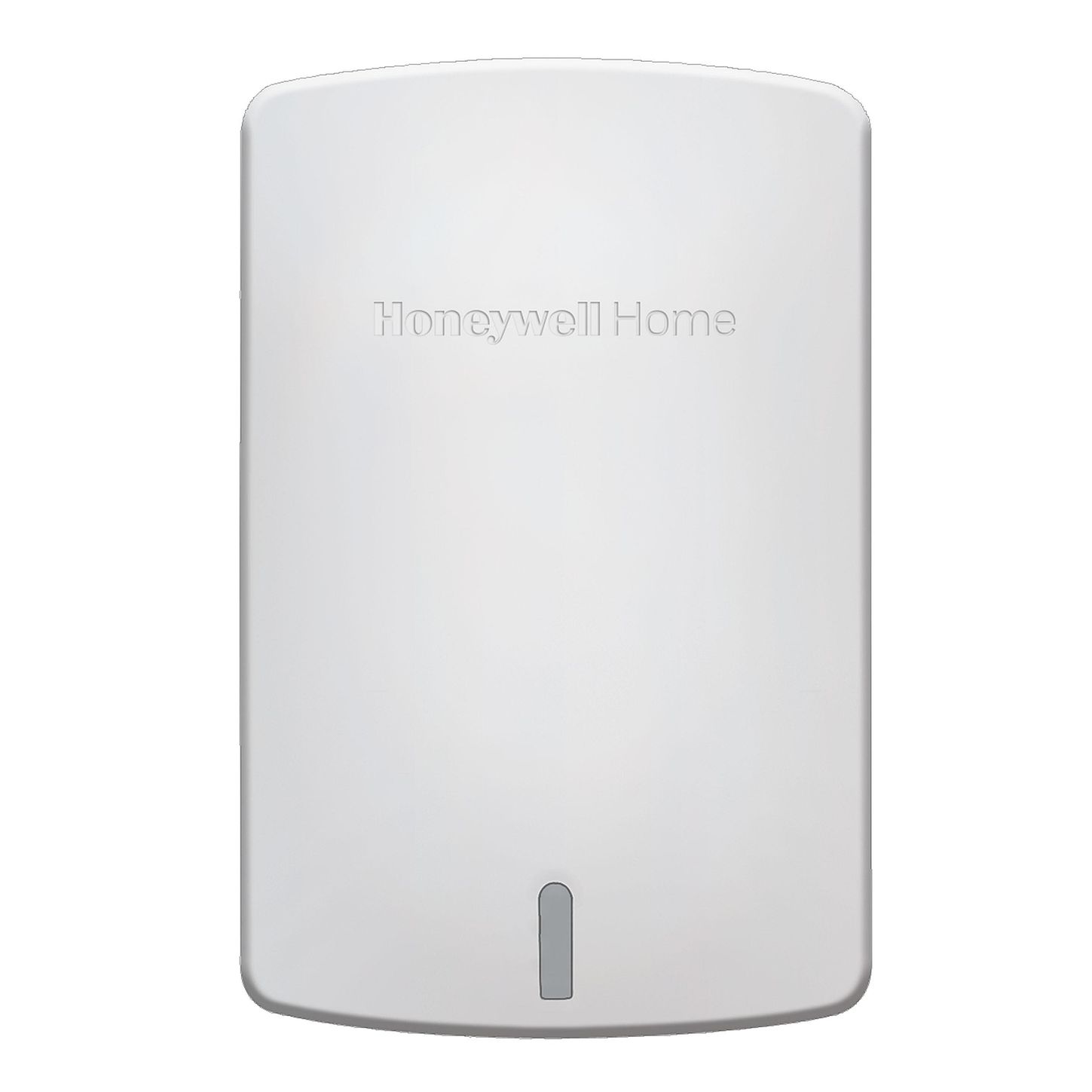

Resideo C7189R1004

C7189R1004 RedLINKВ®-Enabled Wireless Indoor Air Sensor

Overview:

The Wireless Indoor Sensor(s) is used to change the sensing location of the thermostat. Sense temperature and humidity remotely, average temperature, and humidify and dehumidify in separate locations.

Specifications:

• Application: Wireless Indoor Air Sensor
• Dimensions (in.): 2 ⅞ in. high x 1 ⅞ in. wide x 15/16 in. deep
• Dimensions (mm): 73mm high x 48 mm wide x 24 mm deep
• Includes: 2 AAA alkaline batteries and mounting hardware
• Used With: Redesigned Prestige IAQ, Prestige IAQ 2.0, Prestige 2.0, All New RedLINK VisionPRO 8000
• Mounting: Mounts on a vertical wall with supplied bracket and mounting hardware
• Operating Humidity Range (% RH): 5 to 90% RH, non-condensing
• Operating Temperature Range (F): 35 F to 114 F for optimal battery life,0 F to 120 F
• Operating Temperature Range (C): -17.8 C to 48.9 C,1.7 C to 45.6 C for optimal battery life
• Color: Arctic White
• Power Method: Battery

Features:

• Used to sense temperature if the thermostat is installed in a poor temperature sensing location.
• Small remote temperature sensor to match any room decor.
• Easy to install and use.
• Factory calibrated; no field calibration required.
