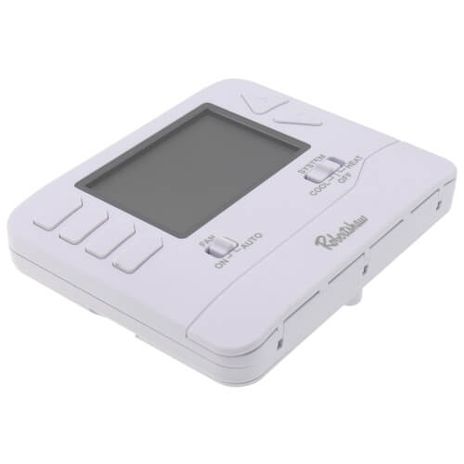

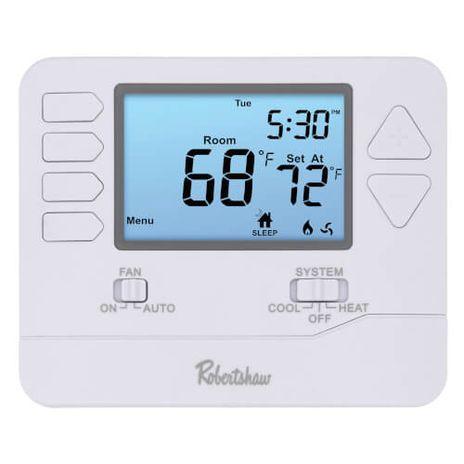

Robertshaw RS9220

Thermostat, Programmable, 7-Day, 5-1-1, NP, 2H/2C

Contractors can offer owners easy, yet powerful and reliable two-stage heating and cooling control in a simple, modern design with the RS9220 programmable wall thermostat.

Multi-Stage - 2 Heat / 2 Cool

• Large terminal blocks for easy installation

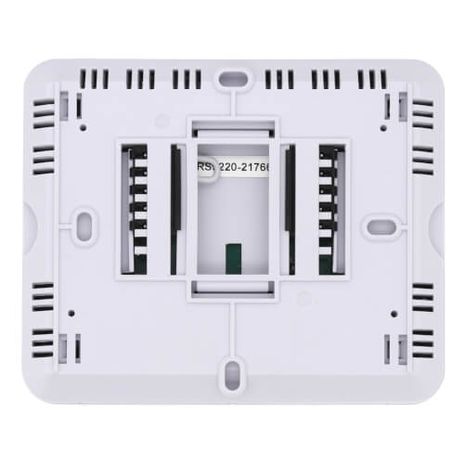

• Universal sub-base

• Quick-access menu button

• Contractor/technician setup menu

• Easy-to-understand programming menus

• Intuitive wake, leave, return, sleep programming icons

• 24V AC Powered  OR Battery Operation (Included)

• 6Year Limited Warranty

• Factory pre-set energy efficiency program Simple, yet powerful control.

• Large, easy-to-read 4.6-square-inch blue backlit display

• Easy-access front-load battery compartment

• Adjustable temperature differential (swing) for energy optimization and maximum system life

• Adjustable room temperature calibration

• Adjustable setpoint limits

• Five-minute selectable on/off compressor delay protection for short-cycling prevention

• Separate O and B terminals

• UPC 662013228231
