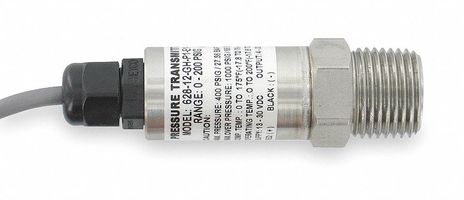

Dwyer 626-10-GH-P9-E1-S1

D1628 Pressure Transmitter 0 to 200 psi ½ in

D1628 Pressure Transmitter Minimum Pressure 0 psi Maximum Pressure 200 psi Electrical Connections Cable Wire Leads Output 4 to 20mA DC Accuracy +/-0.25 Percent of Full Scale Number of Wires 2 Process Connection Gender Male Process Connection Size ½ in Process Connection Type NPT Power Required 10 to 30V DC NEMA Rating NEMA 4X IP Rating IP66 Series 626 Wiring Entry Cable Gland Maximum Operating Temperature 200 Degrees F Minimum Operating Temperature 0 Degrees F
