Watts 0792513

¾ LFFBV-TC-TH

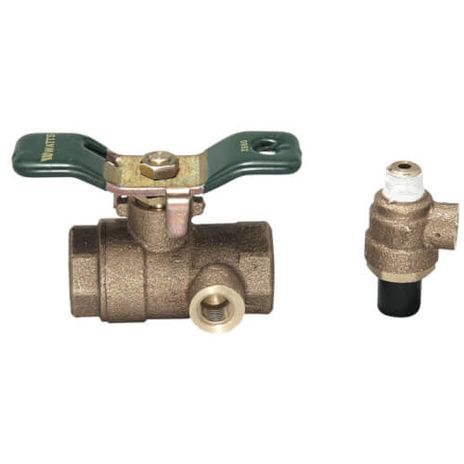

This ¾ inch lead free two-piece, full port, ball valve with female threaded end connections is used in commercial and industrial backflow applications. The valve features bronze body construction, adjustable packing gland, chrome-plated bronze ball, virgin PTFE seats and seals, a bottom loaded blowout proof stem, test cock and a tee handle. Each valve undergoes extensive factory testing before it is shipped, assuring a quality Watts product. The temperature range is 0 to 350 degrees F (-18 to 177 degrees C) at 50 psi (344.7 kPa). The pressure range is 600 psi (41.3 bar) WOG non-shock at 100 degrees F (38 degrees C) and 125 psi (8.6 bar) WSP.

Features

• Excellent for throttling and balancing applications for non-abrasive liquids
• Two-piece construction
• Bronze body construction with chrome-plated brass ball
• Full port for minimal pressure drop
• Material: Bronze
• Control Type: Tee Handle
• Cv Rating: 30 GPM
• Inlet Connection Size: ¾”
• Inlet Connection Type: Female Threaded
• Outlet Connection Type: Female Threaded
• Operating Torque 150 in-lbs
• Stem Type: Bottom Loaded Blowout Proof
• Valve Style: 2-Piece
• WOG Rating: 600 PIS
