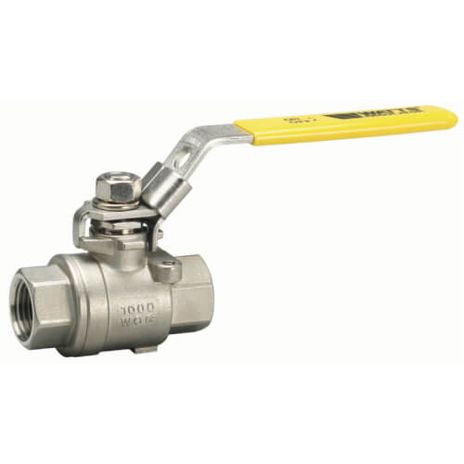

Watts 0548013

¾ S-FBV-1

This ¾ inch two-piece full port ball valve with female threaded end connections is used in commercial and industrial applications with high operating temperature and pressure limits. The valve features stainless steel body construction, adjustable packing gland, reinforced PTFE seats and seals, a bottom loaded blowout proof stem a vinyl insulator on a heavy duty 304 Latch-Lok stainless steel handle. The temperature range is 0 to 400 degrees F (-18 to 204 degrees C). The pressure rating is 1000 psi (68.9 bar) WOG non-shock and 125 psi (8.6 bar) WSP.

Features

• Full port for minimal pressure drop
• Bottom loaded blowout proof stem
• Reinforced PTFE seats and seals
• Vinyl insulated standard Latch-Lok handle to lock open or closed
• Conforms to MSS-SP-110 and API-598
• Two-piece stainless steel body construction
• Drilled and tapped mounting pads
• Adjustable packing gland

Specifications:

• Body Finish: Stainless Steel
• Ball Material: 316 Stainless Steel
• Control Type: Lever Handle
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: NPT
• Outlet Thread Type: FPT
• Stem Type: Bottom Loaded Blowout Proof
• Valve Style: 2 Piece
• Port Type: Full
