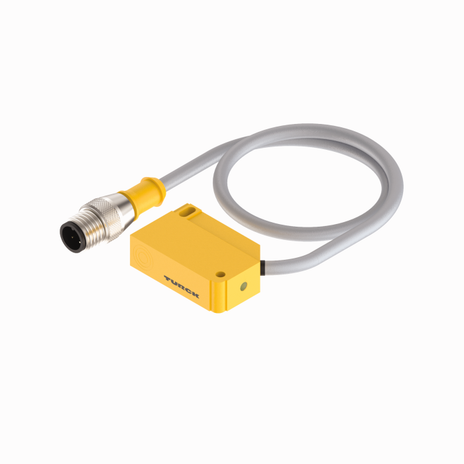

Turck BI5U-Q12-AN6X2-0.2-RS4T
SKU: CS3667848MPN: BI5U-Q12-AN6X2-0.2-RS4TAlternate Part #: 1635597
1635597 - UPROX, RECT., DC, PIGTAIL M12
$151.68
UnitAvailable on backorder
Product Details
Inductive Sensor
With Extended Switching Distance
- Rectangular, height 12mm
- Active face, lateral
- Plastic, PA12‐GF30
- Factor 1 for all metals
- Increased switching distance
- Protection class IP68
- Resistant to magnetic fields
- Mountable on metal
- DC 3-wire, 10…30 VDC
- NO contact, NPN output
- Pigtail with M12 × 1 connector
Attributes
| Ambient Temperature | -25…+70 °C |

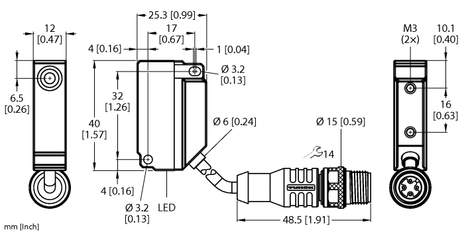

| Construction Size | 40 x 26 x 12 mm, Q12 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Cable with connector, M12 × 1 |
| Housing Material | Plastic, PA12-GF30 |
| Mounting | Flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, NPN |
| Protection Class | IP68 |
| Rated Switching Distance | 5 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields |
| Switching Frequency | 1.0 kHz |
Specifications
| SKU | CS3667848 |
|---|---|
| MPN | BI5U-Q12-AN6X2-0.2-RS4T |
| Alternate Part # | 1635597 |
