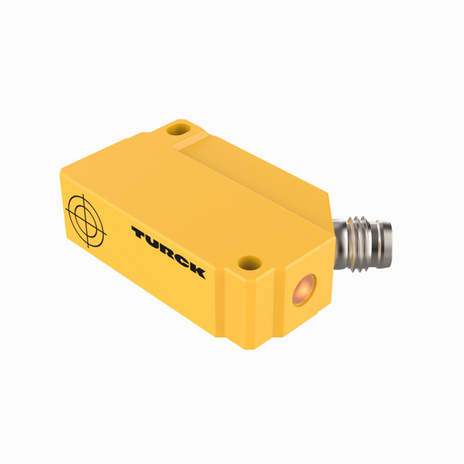

Turck BI5U-Q12-AP6X2-V1131
SKU: CS3153172MPN: BI5U-Q12-AP6X2-V1131Alternate Part #: 1635524UPC/EAN: 4047101081183
1635524 - UPROX, RECT., DC, CON. M8
$139.32
Unit1 in stock
Product Details
Inductive Sensor
With Extended Switching Distance
- Rectangular, height 12mm
- Active face, lateral
- Plastic, PA12‐GF30
- Factor 1 for all metals
- Increased switching distance
- Protection class IP68
- Resistant to magnetic fields
- Mountable on metal
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- M8 x 1 male connector
Attributes
| Ambient Temperature | -25…+70 °C |

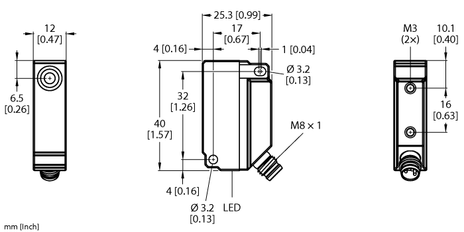

| Construction Size | 40 x 26 x 12 mm, Q12 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M8 × 1 |
| Housing Material | Plastic, PA12-GF30 |
| Mounting | Flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP68 |
| Rated Switching Distance | 5 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields |
| Switching Frequency | 1.0 kHz |
Specifications
| SKU | CS3153172 |
|---|---|
| MPN | BI5U-Q12-AP6X2-V1131 |
| Alternate Part # | 1635524 |
| UPC/EAN | 4047101081183 |
