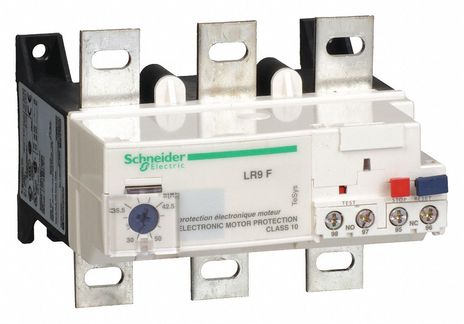

Square D LR9F5369

Name: Square D LR9F5369
Brand: Square D
SKU: CS3658543
Availability: OutOfStock

SKU: CS3658543MPN: LR9F5369

TeSys LRF - electronic thermal overload relay - 90...150 A - class 10

Product Details

TeSys LRF Thermal Overload Relay:

Thermal Overload Class: Class 10* Thermal Protection Adjustment Range: 90A to 150A* Contacts Type and Composition: 1 NO + 1 NC* Conventional Free Air Thermal Current: 5A for control circuit* Rated Operational Voltage: 1000V AC 50/60 Hz for power circuit conforming to VDE 0110 group C* Rated Insulation Voltage: 1000 V AC power circuit conforming to IEC 60947-4* Control Type: Dial white full-load current adjustment, Test button red, Push-button red reset, Push-button stop* Degree of Protection: IP20 conforming to IEC 60529 and VDE 0106

Ambient Air Temperature For Storage	-40-85 °C
Contacts Type And Composition	1 NO + 1 NC
Device Short Name	LR9F
Local Signalling	trip indicator
Network Frequency	50/60 Hz
Network Type	AC
Product Certifications	UL# #CSA# #UKCA
Product Compatibility	LC1F115…LC1F185
Product Name	TeSys LRF
Product Or Component Type	electronic thermal overload relay
Range	TeSys
Relay Application	motor protection
Standards	VDE 0660# #IEC 60255-17# #IEC 60947-4-1# #IEC 60255-8# #EN 60947-4-1
Switching Capacity In Ma	0…150 mA
Temperature Compensation	-20-70 °C
Thermal Protection Adjustment Range	90-150 A
