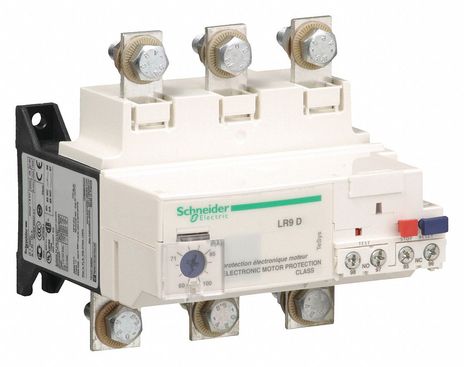

Square D LR9D5567

Name: Square D LR9D5567
Brand: Square D
SKU: CS4811764
Price: 359.47 USD
Availability: OutOfStock

SKU: CS4811764MPN: LR9D5567

thermal overload relays, TeSys Deca, 60...100A, class 20

$359.47

Unit

Available on backorder

Quantity

remove

add

Product Details

TeSys LRD Thermal Overload Relay:

Trip Class: Class 20* Thermal Protection Adjustment Range: 60A to 100A* Rated Supply Voltage: 24V DC* Mounting Support: Rail, Under contactor* Conventional Free Air Thermal Current: 5A for signaling current* Rated Operational Voltage: 690V 50/60 Hz* Control Type: Red push-button stop, Blue push-button for reset mode* Degree of Protection: IP20 conforming to IEC 60529

Ambient Air Temperature For Storage	-60-70 °C
Auxiliary Contact Composition	1 NO + 1 NC
Device Short Name	LR9D
Network Frequency	50…60 Hz
Network Type	AC
Product Certifications	UL# #CSA# #CCC# #UKCA
Product Compatibility	LC1D150# #NSX circuit breaker# #LC1D115
Product Name	TeSys LRD# #TeSys Deca
Product Or Component Type	electronic thermal overload relay
Range	TeSys
Relay Application	motor protection
Signalling Function	alarm
Standards	EN/IEC 60947-4-1# #EN/IEC 60947-5-1# #UL 60947-4-1# #UL 60947-5-1# #CSA C22.2 No 60947-4-1# #CSA C22.2 No 60947-5-1# #GB/T 14048.4# #GB/T 14048.5
Supply Voltage Limits	17-32 V
Switching Capacity In Ma	0…150 mA
Temperature Compensation	-20-60 °C
Thermal Protection Adjustment Range	60-100 A
