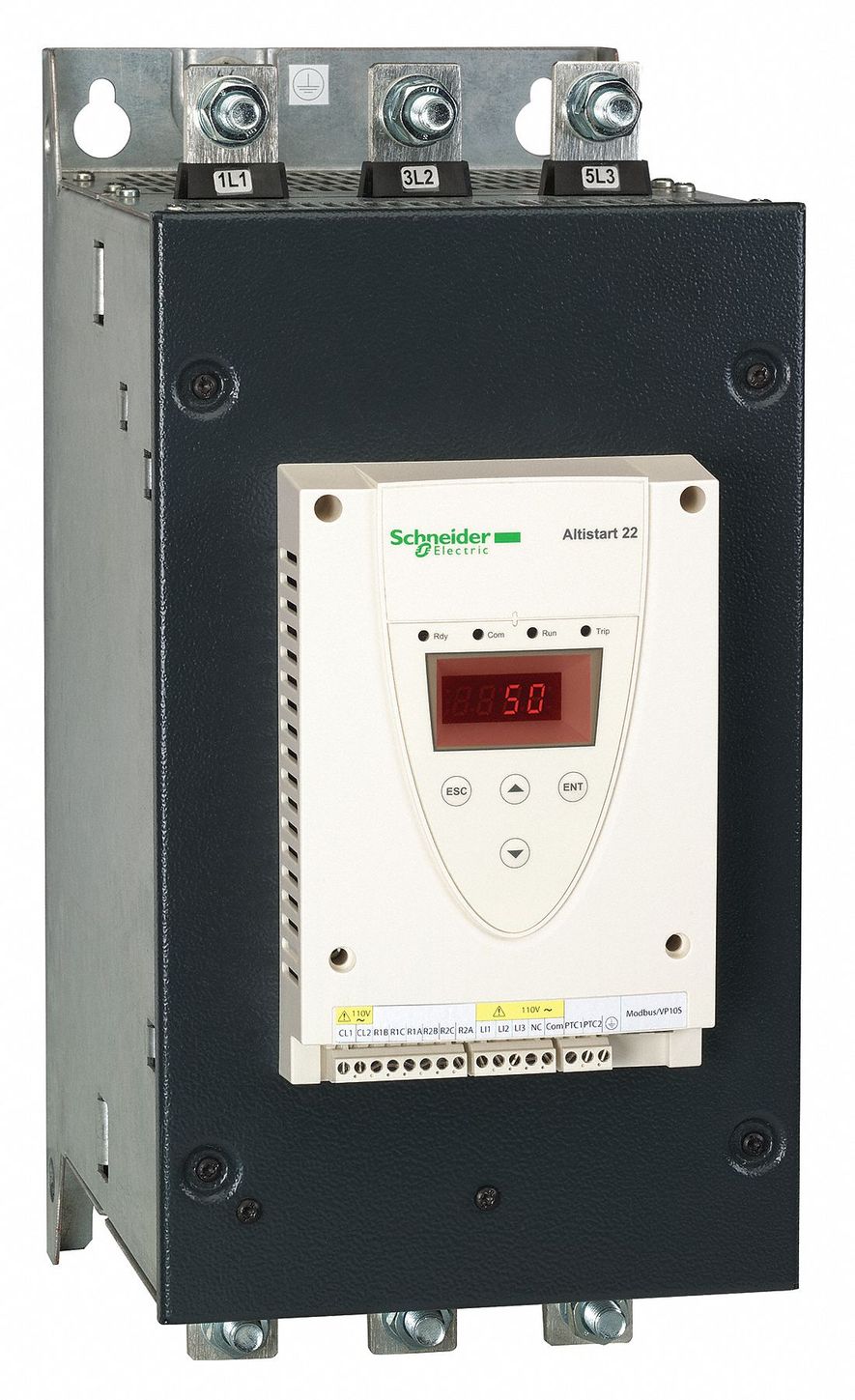

Square D ATS22C41S6U
SKU: CS3639780MPN: ATS22C41S6U
soft starter for asynchronous motor, Altistart 22, control 110V, 208 to 575V, 125 to 350hp
$6,566.87
UnitAvailable on backorder
Product Details
Soft starter-ATS22-ctrl110V, Power208V(125hp)/230V(150hp)/460V(300hp)/575V(350hp
Attributes
| Ambient Air Temperature For Storage | -25-70 °C |
| Assembly Style | with heat sink |
| Communication Data Link | serial |
| Communication Port Protocol | Modbus |
| Component Name | ATS22 |
| Connector Type | 1 RJ45 |
| Control Circuit Consumption | 20 W |
| Device Connection | in the motor supply line |
| Discrete Input Number | 3.0 |
| Discrete Output Number | 2.0000 |
| Factory Setting Current | 361 A |
| Function Available | internal bypass |
| Installed Device | 31.0000 |
| Marking | CE |
| Network Frequency | 45…66 Hz |
| Noise Level | 56 dB |
| Operating Position | vertical ± 10 degree |
| Physical Interface | RS485 multidrop |
| Product Certifications | UL# #CSA# #CCC# #GOST# #C-Tick |
| Product Destination | asynchronous motors |
| Product Or Component Type | soft starter |
| Product Specific Application | pumps and fans |
| Ptc Probe Input | 750 Ohm |
| Range Of Product | Altistart 22 |
| Standards | EN/IEC 60947-4-2 |
| Supply Voltage Limits | 177-660 V |
| Transmission Rate | 4800, 9600 or 19200 bps |
| Type Of Cooling | forced convection |
| Type Of Start | start with torque control (current limited to 3.5 In) |
| Utilisation Category | AC-53A |
Specifications
| SKU | CS3639780 |
|---|---|
| MPN | ATS22C41S6U |
