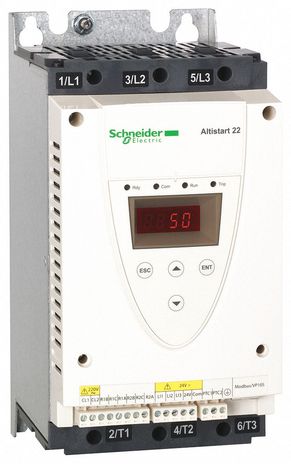

Square D ATS22D47S6

Name: Square D ATS22D47S6
Brand: Square D
SKU: CS3641208
Price: 1444.56 USD
Availability: OutOfStock

SKU: CS3641208MPN: ATS22D47S6

soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 500V, 11 to 30kW

$1,444.56

Unit

Available on backorder

Quantity

remove

add

Product Details

Altistart 22 Soft Start (ATS22)

For Asynchronous Motor* lcL Starter Rating: 40A* US Rated Supply Voltage: 230-600V* Motor Power kW: 11-30 kW* Network Number of Phases: Triple-phase* Integrated Bypass* Assembly Style: with Heat Sink

Ambient Air Temperature For Storage	-25-70 °C
Assembly Style	with heat sink
Communication Data Link	serial
Communication Port Protocol	Modbus
Component Name	ATS22
Connector Type	1 RJ45
Control Circuit Consumption	20 W
Device Connection	in the motor supply line
Discrete Input Number	3.0
Discrete Output Number	2.0000
Factory Setting Current	40 A
Function Available	internal bypass
Installed Device	31.0000
Marking	CE
Network Frequency	45…66 Hz
Noise Level	45 dB
Operating Position	vertical ± 10 degree
Physical Interface	RS485 multidrop
Product Certifications	GOST# #CSA# #UL# #C-Tick# #CCC
Product Destination	asynchronous motors
Product Or Component Type	soft starter
Product Specific Application	pumps and fans
Ptc Probe Input	750 Ohm
Range Of Product	Altistart 22
Standards	EN/IEC 60947-4-2
Supply Voltage Limits	195-660 V
Transmission Rate	4800, 9600 or 19200 bps
Type Of Cooling	forced convection
Type Of Start	start with torque control (current limited to 3.5 In)
Utilisation Category	AC-53A
