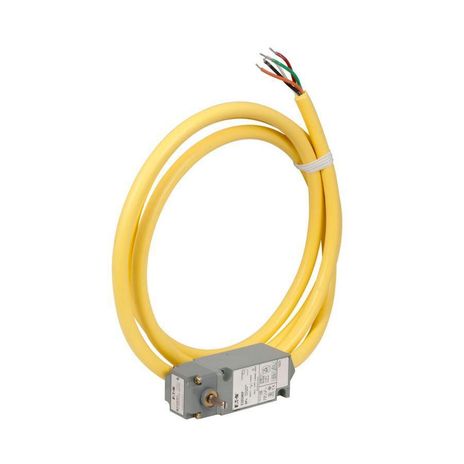

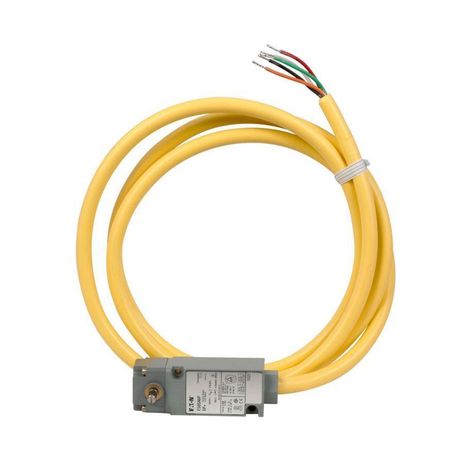

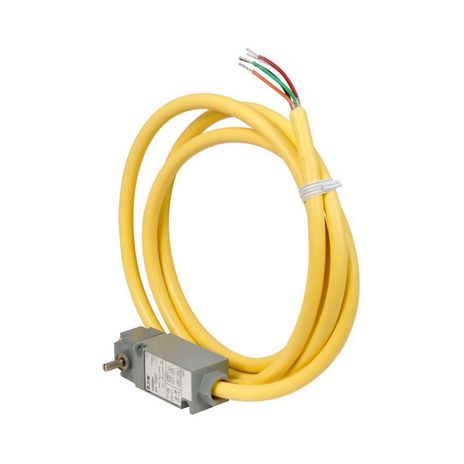

Eaton E50AR16P

Name: Eaton E50AR16P
Brand: Eaton
SKU: CS360799
Price: 503.15 USD
Availability: OutOfStock

SKU: CS360799MPN: E50AR16PUPC/EAN: 782113119557

Eaton E50 NEMA heavy duty plug-in limit switch

Eaton E50AL16P, E50AM16P, E50AR16P, E50BL16P, E50BM16P, E50BR16P

Eaton E50AH1, E50AH16P, E50AL1, E50AL16P, E50AM16P, E50AR1, E50AR16P, E50AS1, E50AS16P, E50AS2, E50AS3, E50AS36P, E50AT1, E50AT16P, E50AT2

Product Details

Eaton E50 NEMA heavy duty plug-in limit switch, Assembly, 10A at 240 Vac, 1A at 250 Vdc, Side rotary, standard spring return, SOOW-J, 1NO-1NC, 96Foot, Die cast zinc, NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67, IP69K, 10A, 1A, 10° to 200°F, E50

Attributes

Actuator	Side rotary, standard spring return
Cable Type	SOOW-A
Contact Configuration	1 NO-1 NC
Contact Rating	10A at 240 Vac, 1A at 250 Vdc
Enclosure Material	Die cast zinc
Environmental Rating	NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67, IP69K
Maximum Ac Current	10 A
Maximum Dc Current	1 A
Operating Temperature Max	200 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	10 FAH
Operating Temperature Min Uom	FAH
Series	E50
Type	Assembly
