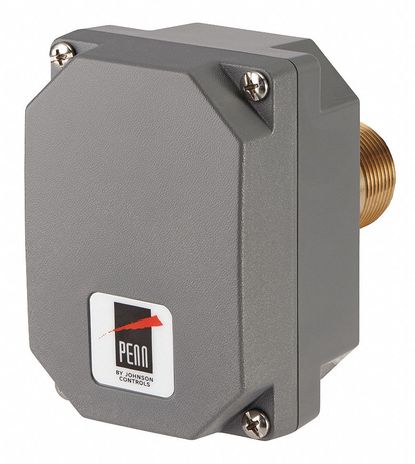

Johnson Controls F261MAH-V01C

LIQUID FLOW SWITCH; LIQUID FLOW SWITCH

The F261 Series Flow Switches respond to fluid flow in lines carrying water, ethylene glycol, or other nonhazardous fluids. These models also work in applications with swimming pool water and lubricating oils.

F261 Series Standard Flow Switches use a variety of paddle sizes to respond to fluid flow rates in applications with pipe sizes greater than 1 inch trade size.

Features and Benefits

• Type 4 (NEMA) enclosure allows use in indoor or outdoor applications.
• Viton® diaphragms allow use in fluid lines carrying chlorinated water, treated water, or other nonhazardous fluids
• Maximum fluid pressure of 290 psig (20 bar) permits use in a wide range of pressure flow conditions.

Standard model flow switch with Type 4 (NEMA) enclosure; 1 in., 2 in., 3 in., and 6 in. stainless steel paddles, lock-tooth washer, and stainless steel paddle screw supplied uninstalled
