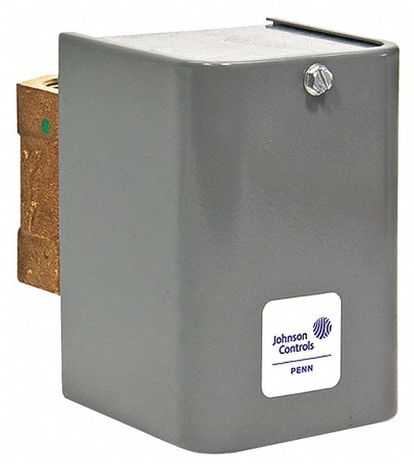

Johnson Controls F261KFH-V01C

LIQUID FLOW SWITCH; LIQUID FLOW SWITCH

Flow Switch Low Flow Max HP 1 Min Flow Rate (GPM) 0.6 gpm Max Flow GPM 17 gpm Flow Rate 0.6 gpm to 17 gpm Connection Size (In.) ¾ FNPT x ¾ FNPT Switch Enclosure NEMA 3R Min Ambient Temp (F) -40 Degrees Max Ambient Temp (F) 140 Degrees F Min Fluid Temp (F) -20 Degrees F Max Fluid Temp (F) 250 Degrees F Max Pressure (PSI) 290 psi Switch Type SPDT Contact Rating 16A @ 120V AC - Full Load Body Material Plastic with Stainless Steel Paddle Wetted Materials Viton
