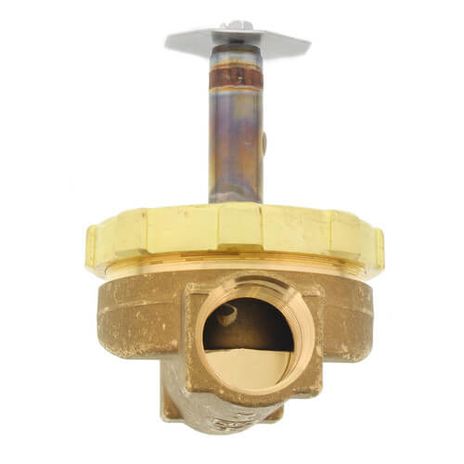

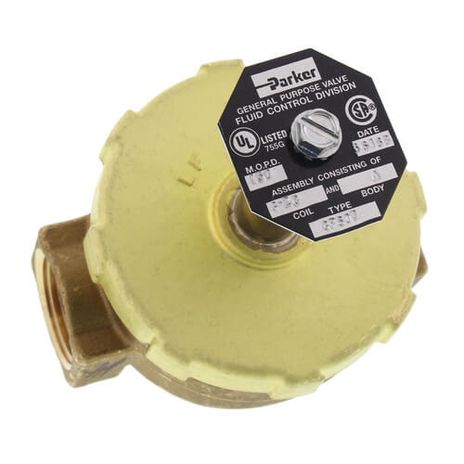

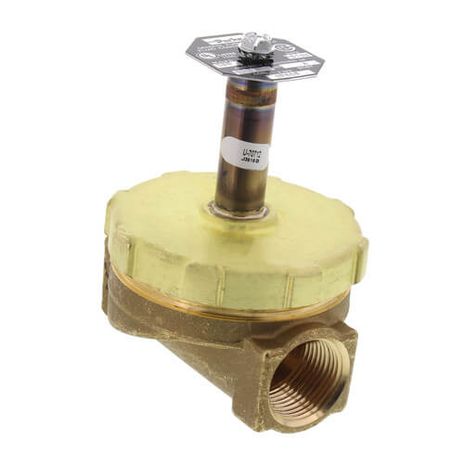

Parker 70712

¾” GP600 Normally Closed General Purpose Solenoid Valve (7.4 Cv)

Type 1 two-way solenoid valves can be used on either low or high pressure. The smaller valves are direct acting while the larger valves are pilot operated. These valves are for general application on non-corrosive fluids such as air, water below 180°F, light oils below 300 SUS, and low vacuum. All seal off bubbletight.

Please note: All valves sold without coil

• Forged brass body with Buna “N” diaphragm, type 430 stainless steel plunger and fluoroelastomer pilot seat
• Maximum fluid temperature: 225°F
• Air, Water, Oil: 1-150 PSI
• Normally closed
• Port Size: ¾”
• Flow Capacity: 7.4 Cv
