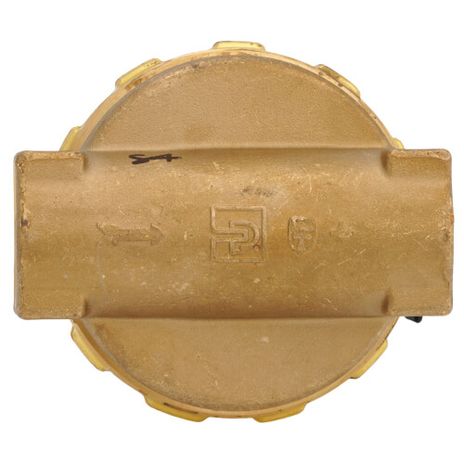

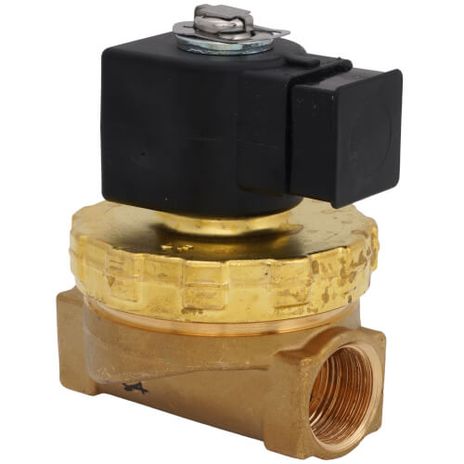

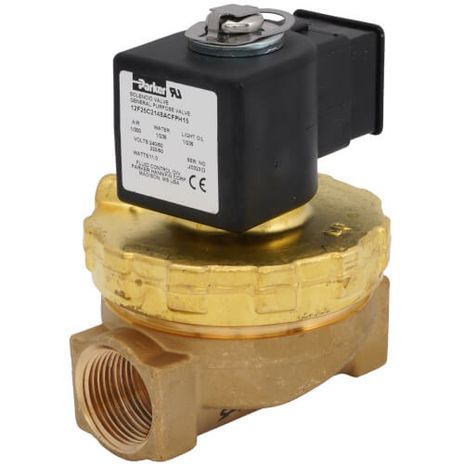

Parker 12F25C2148ACFPH15

¾” Gold Ring Series 2-Way Normally Closed Pilot Operated Solenoid Valve (7.4 Cv)

Please note: All valves sold without coil.

Parker’s Gold Ring line of brass body general purpose solenoid valves include the two, three and four-way products for use in a variety of applications. The valves are used in situations where the need exists to electrically control the flow of a fluid or gas.

• Normally Closed - energize to open pressure port. De-energized, closed.
• Maximum Working Pressure - 300 PSI
• Flow Capacity - 7.4 CV
• Hot Water: 1-300 PSI
• Maximum Fluid Temperature: 180 °F
• Port Size: ¾”
• Input Voltage:220/50-240/60
• Valve Type: 2-Way
• Function: Normally Closed
• Power (Watts): 11 Watt (AC)
