HVAC/RValvesBelimo

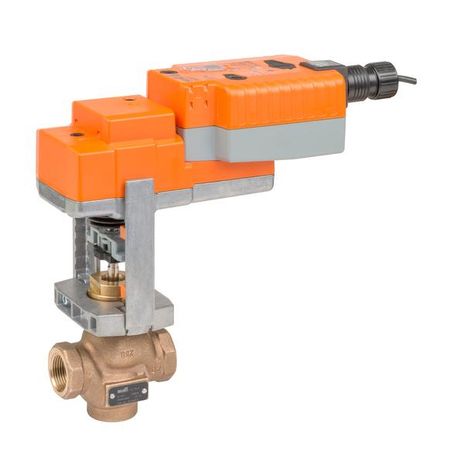

Belimo G240S-N+LVKB24-MFT

SKU: CS3356347MPN: G240S-N+LVKB24-MFT

Globe Valve (GV), 1 ½”, 2-way, ANSI Class 250, Cv 28 |Valve Actuator, Electronic fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

Belimo G215B-C+LVKB24-3, G215B-C+LVKB24-MFT, G215B-C+LVKB24-SR, G215B-C+LVKX24-3, G215B-C+LVKX24-MFT, G215B-C+LVKX24-SR, G215B-F+LVKB24-3, G215B-F+LVKB24-MFT, G215B-F+LVKB24-SR, G215B-F+LVKX24-3, G215B-F+LVKX24-MFT, G215B-F+LVKX24-SR, G215B-G+LVKB24-3, G215B-G+LVKB24-MFT, G215B-G+LVKB24-SR
$1,980.77
Unit
Available on backorder
remove
add

Product Details

Globe Valve (GV), 1 ½”, 2-way, ANSI Class 250, Cv 28 |Valve Actuator, Electronic fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

Attributes

Control MFT/programmable
Valve Size 1.5” [40]
Cv 28.0
Flow Pattern 2-way
Fail-Safe Electronic fail-safe 0…100%
Valve Trim Stainless steel
Nominal Voltage AC/DC 24 V
Close-Off Pressure ∆Ps 250 psi
Transformer Sizing 6 VA (class 2 power source)
Enclosure UL Enclosure Type 2
Pressure Independent NO
Power Supply 24 VAC, ±20%, 50/60 Hz, 24 VDC, ±10%
Power Consumption In Operation 2.5 W
Power Consumption In Rest Position 1.5 W
Electrical Connection 18 GA plenum cable, 3 ft [1 m], with ½” conduit connector, degree of protection NEMA 2 / IP54
Overload Protection electronic throughout full stroke
Operating Range 2…10 V (default), 4…20 mA w/ ZG-R01 (500 Ω, ¼ W resistor), variable (VDC, PWM, on/off, floating point)
Operating Range Y Variable Start point 0.5…30 V End point 2.5…32 V
Input Impedance 100 kΩ for 2…10 V (0.1 mA), 500 Ω for 4…20 mA, 1500 Ω for PWM, On/Off and Floating point
Position Feedback 2…10 V, Max. 0.5 mA, VDC variable
Direction Of Motion Motor selectable with switch
Position Indication Mechanically, with pointer
Running Time (Motor) 90 s constant, independent of load
Running Time Fail-Safe <35 s
Ambient Humidity max. 95% r.H., non-condensing
Ambient Temperature -22…122°F [-30…50°C]
Storage Temperature -40…176°F [-40…80°C]
Fluid chilled or hot water, up to 60% glycol, steam
Controllable Flow Range stem up - open A – AB
Pipe Connection NPT female ends
Ansi Class 250
Maximum Inlet Pressure (Steam) 100 psi [690 kPa]
Max Differential Pressure (Steam) 50 psi [345 kPa]
Rangeability Sv 100:1
Fluid Temp Range (Water) 20…338°F [-7…170°C]
Degree Of Protection Iec/En IP54
Degree Of Protection Nema/Ul NEMA 2
Connection cable
Cv Range [Gpm] 17…47
Pipe Connection Type internal thread
Kvs Range [M³/H] 15…40 m³/h
Stroke 0.75” [19 mm]
Flow Characteristic modified equal percentage
Servicing repack kits available
Valve Body Bronze
Valve Plug Stainless steel AISI 316
Stem 316 stainless steel
Seat Stainless steel AISI 316
Stem Seal EPDM O-ring
Housing Material Die cast aluminium and plastic casing
Nominal Voltage Dc 24 V
Nominal Voltage Ac 24 V
Noise Level, Motor 55 dB(A)
Body Pressure Rating ANSI Class 250, up to 400 psi below 150°F
Electrical Protection actuators are double insulated
Quality Standard ISO 9001
Fluid Temp Range (Steam) 32…338°F [0…170°C]
Maximum Differential Pressure (Water) 50 psi [345 kPa]
Noise Level, Fail-Safe 60 dB(A)
Agency Listing cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU
Fail-Safe Function Electronic fail-safe
Control Type Web MFT/Programmable
Fail-Safe YES

Specifications

SKUCS3356347
MPNG240S-N+LVKB24-MFT
