Belimo F6100HDU+GRCX24-3-T N4
SKU: CS3355424MPN: F6100HDU+GRCX24-3-T N4
Butterfly Valve (BFV), 4”, 2-way, ANSI Class Consistent with 125, Cv 600 |Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating …
$1,276.17
UnitAvailable on backorder
Product Details
Butterfly Valve (BFV), 4”, 2-way, ANSI Class Consistent with 125, Cv 600 |Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point, NEMA 4X, terminals
Attributes
| Control | On/Off Floating point |
| Valve Size | 4” [100] |
| Cv | 600.0 |
| Cv 60° | 230.0 |
| Cv 90° | 600.0 |
| Flow Pattern | 2-way |
| Fail-Safe | Non-Spring Return |
| Nominal Voltage | AC/DC 24 V |
| Close-Off Pressure ∆Ps | 50 psi |
| Transformer Sizing | 11 VA (class 2 power source) |
| Enclosure | UL Enclosure Type 4X |
| Pressure Independent | NO |
| Power Supply | 24 VAC, ±20%, 50/60 Hz, 24 VDC, ±10% |
| Power Consumption In Operation | 8 W |
| Power Consumption In Rest Position | 2.5 W |
| Electrical Connection | Terminal blocks |
| Overload Protection | electronic thoughout 0…90° rotation |
| Input Impedance | 600 Ω |
| Angle Of Rotation | 90°, adjustable with mechanical stop |
| Direction Of Motion Motor | selectable with switch 0/1 |
| Position Indication | Mechanically, 5…20 mm stroke |
| Running Time (Motor) | 35 s, constant, independent of load |
| Ambient Humidity | max. 95% r.H., non-condensing |
| Ambient Temperature | -22…122°F [-30…50°C] |
| Storage Temperature | -40…176°F [-40…80°C] |
| Fluid | chilled or hot water, up to 60% glycol |
| Controllable Flow Range | 90° rotation |
| Pipe Connection | for use with ANSI class 125/150 flanges |
| Ansi Class | Consistent with 125 |
| Number Of Bolt Holes | 8.0 |
| Lug Threads | ⅝-11 UNC |
| Rangeability Sv | 10:1 (for 30…70° range) |
| Maximum Velocity | 12 FPS |
| Fluid Temp Range (Water) | -22…250°F [-30…120°C] |
| Degree Of Protection Iec/En | IP66/67 |
| Degree Of Protection Nema/Ul | NEMA 4X |
| Connection | terminals |
| Pipe Connection Type | flange |
| Kvs Range [M³/H] | 171…1000 m³/h |
| Kvmax Range [M³/H] | 171…1000 m³/h |
| Flow Characteristic | modified equal percentage |
| Servicing | maintenance-free |
| Valve Body | Ductile cast iron ASTM A536 |
| Stem | 416 stainless steel |
| Seat | EPDM |
| Stem Seal | EPDM (lubricated) |
| Housing Material | Polycarbonate |
| Nominal Voltage Dc | 24 V |
| Nominal Voltage Ac | 24 V |
| Noise Level, Motor | 45 dB(A) |
| Body Pressure Rating | ANSI Class Consistent with 125, 232 psi CWP |
| Quality Standard | ISO 9001 |
| Bearing | RPTFE |
| Disc | 304 stainless steel |
| Body Finish | epoxy powder coating (blue RAL 5002) |
| Agency Listing | cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU |
| Cv 60° Range [Gpm] | 198…1160 |
| Cv 90° Range [Gpm] | 198…1160 |
| Bolt Half Centered | 7.5 |
| Fail-Safe Function | Non fail-safe |
| Control Type Web | Floating/3-point |
| Fail-Safe | NO |
Specifications
| SKU | CS3355424 |
|---|---|
| MPN | F6100HDU+GRCX24-3-T N4 |
You may also like
Belimo F650HD+GRCX24-3-T N4
$1,065.13Unit
Belimo F680HDU+GRCX24-3-T N4
$1,209.43UnitBelimo F680HD+GRCX24-3-T N4
$1,249.73UnitBelimo F6125HDU+GRCX24-3-T N4
$1,327.73UnitBelimo F665HD+GRCX24-3-T N4
$1,218.10Unit

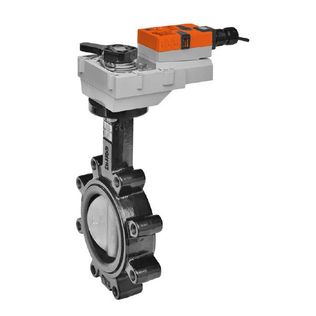

Belimo F6100HDU+GRX24-3
$714.13UnitBelimo F6100HDU+GRX24-MFT-T N4
$1,359.37Unit

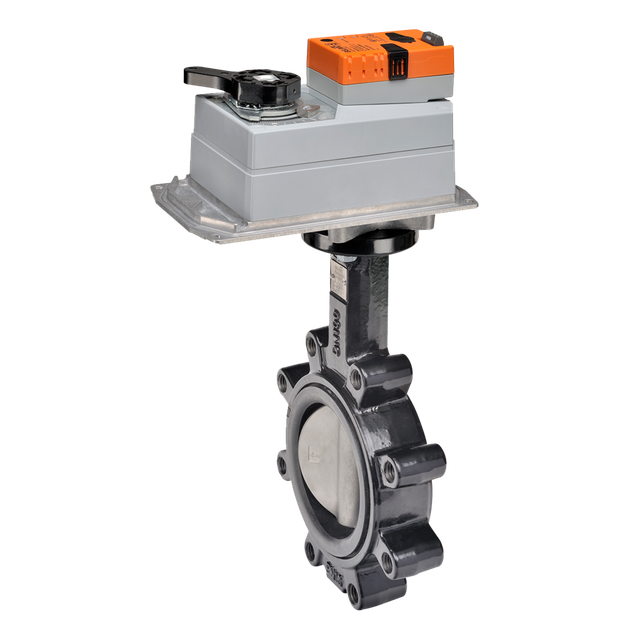

Belimo F6100HD+DKRX24-3-T

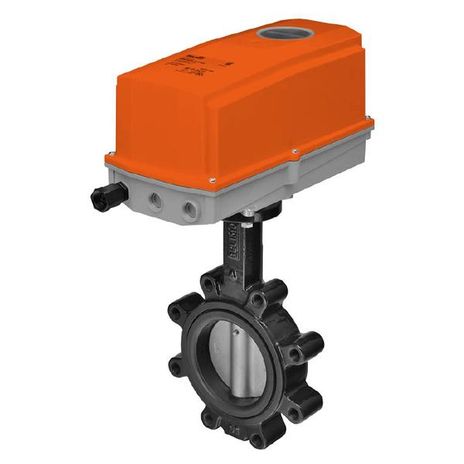

$1,118.43UnitBelimo F6100HD+DRCX120-3 N4
