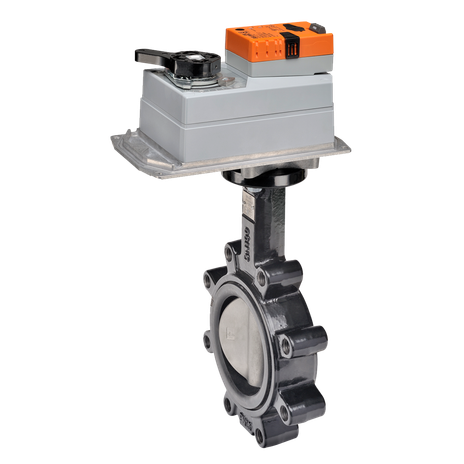

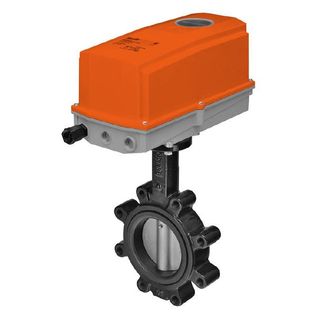

Belimo F6100HD+DKRX24-3-T
SKU: CS3354974MPN: F6100HD+DKRX24-3-T
Butterfly Valve (BFV), 4”, 2-way, ANSI Class Consistent with 125, Cv 600 |Configurable Valve Actuator, Electronic fail-safe, AC 24 V, On/Off, Float…
$1,118.43
UnitAvailable on backorder
Product Details
Butterfly Valve (BFV), 4”, 2-way, ANSI Class Consistent with 125, Cv 600 |Configurable Valve Actuator, Electronic fail-safe, AC 24 V, On/Off, Floating point, terminals
Attributes
| Control | On/Off Floating point |
| Valve Size | 4” [100] |
| Cv | 600.0 |
| Cv 60° | 230.0 |
| Cv 90° | 600.0 |
| Flow Pattern | 2-way |
| Fail-Safe | Electronic fail-safe 0…100% |
| Nominal Voltage | AC 24 V |
| Close-Off Pressure ∆Ps | 200 psi |
| Transformer Sizing | 21 VA (class 2 power source) |
| Enclosure | UL Enclosure Type 2 |
| Pressure Independent | NO |
| Power Supply | 24 VAC, ±20%, 50/60 Hz |
| Power Consumption In Operation | 12 W |
| Power Consumption In Rest Position | 3 W |
| Electrical Connection | Terminal blocks |
| Overload Protection | electronic thoughout 0…90° rotation |
| Direction Of Motion Motor | selectable with switch 0/1 |
| Position Indication | Mechanically, integrated, two-section |
| Running Time (Motor) | default 150 s, variable 90…150 s |
| Running Time Fail-Safe | <35 s |
| Ambient Humidity | max. 95% r.H., non-condensing |
| Ambient Temperature | -22…122°F [-30…50°C] |
| Storage Temperature | -40…176°F [-40…80°C] |
| Fluid | chilled or hot water, up to 60% glycol |
| Controllable Flow Range | 90° rotation |
| Pipe Connection | for use with ANSI class 125/150 flanges |
| Ansi Class | Consistent with 125 |
| Number Of Bolt Holes | 8.0 |
| Lug Threads | ⅝-11 UNC |
| Rangeability Sv | 10:1 (for 30…70° range) |
| Maximum Velocity | 12 FPS |
| Fluid Temp Range (Water) | -22…250°F [-30…120°C] |
| Degree Of Protection Iec/En | IP54 |
| Degree Of Protection Nema/Ul | NEMA 2 |
| Connection | terminals |
| Pipe Connection Type | flange |
| Kvs Range [M³/H] | 171…1000 m³/h |
| Kvmax Range [M³/H] | 171…1000 m³/h |
| Flow Characteristic | modified equal percentage |
| Servicing | maintenance-free |
| Valve Body | Ductile cast iron ASTM A536 |
| Stem | 416 stainless steel |
| Seat | EPDM |
| Stem Seal | EPDM (lubricated) |
| Housing Material | Polycarbonate |
| Nominal Voltage Ac | 24 V |
| Noise Level, Motor | 45 dB(A) |
| Body Pressure Rating | ANSI Class Consistent with 125, 232 psi CWP |
| Quality Standard | ISO 9001 |
| Bearing | RPTFE |
| Disc | 304 stainless steel |
| Body Finish | epoxy powder coating (blue RAL 5002) |
| Noise Level, Fail-Safe | 50 dB(A) |
| Agency Listing | Listed to UL 2043 - suitable for use in air plenums per Section 300.22(C) of the NEC and Section 602 of the IMC |
| Cv 60° Range [Gpm] | 198…1160 |
| Cv 90° Range [Gpm] | 198…1160 |
| Bolt Half Centered | 7.5 |
| Fail-Safe Function | Electronic fail-safe |
| Control Type Web | Floating/3-point |
| Fail-Safe | YES |
Specifications
| SKU | CS3354974 |
|---|---|
| MPN | F6100HD+DKRX24-3-T |
