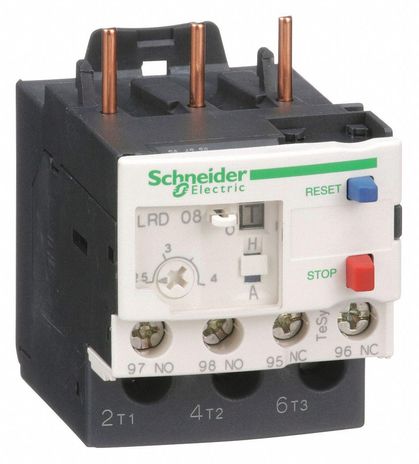

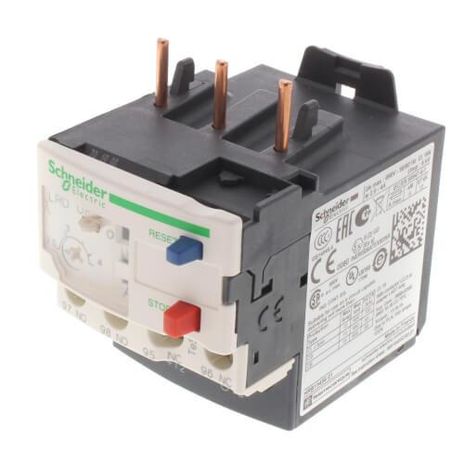

Square D LRD08
SKU: CS323188MPN: LRD08
Thermal overload relay, TeSys Deca, 690VAC, 3P, 2.5 to 4A, 1NO+1NC, class 10A, screw clamp
$63.85
UnitAvailable on backorder
Product Details
Overload Relay (TeSys D):
- Class 10 with Single Phase Sens.* Trip: 2.5A to 4.0A
Attributes
| Ambient Air Temperature For Storage | -60-70 °C |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Device Short Name | LRD |
| Network Frequency | 0…400 Hz |
| Network Type | AC# #DC |
| Product Certifications | IEC# #UL# #CSA# #CCC# #EAC# #BV# #RINA# #DNV-GL# #LROS (Lloyds register of shipping)# #ATEX INERIS# #UKCA |
| Product Compatibility | LC1D12# #LC1D09# #LC1D25# #LC1D38# #LC1D32# #LC1D18 |
| Product Name | TeSys LRD# #TeSys Deca |
| Product Or Component Type | differential thermal overload relay |
| Range | TeSys# #TeSys Deca |
| Relay Application | motor protection |
| Standards | EN/IEC 60947-4-1# #EN/IEC 60947-5-1# #UL 60947-4-1# #UL 60947-5-1# #CSA C22.2 No 60947-4-1# #CSA C22.2 No 60947-5-1# #GB/T 14048.4# #GB/T 14048.5# #EN 50495 |
| Temperature Compensation | -20-60 °C |
| Thermal Protection Adjustment Range | 2.5-4 A |
Specifications
| SKU | CS323188 |
|---|---|
| MPN | LRD08 |
