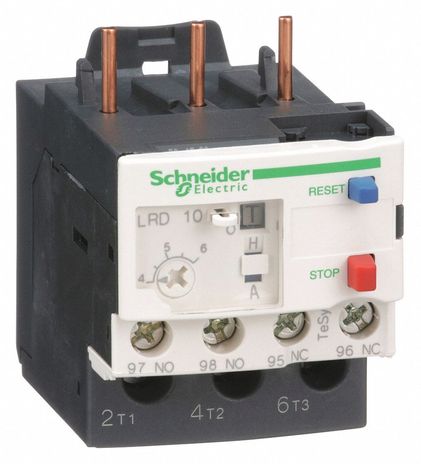

Square D LRD10

Name: Square D LRD10
Brand: Square D

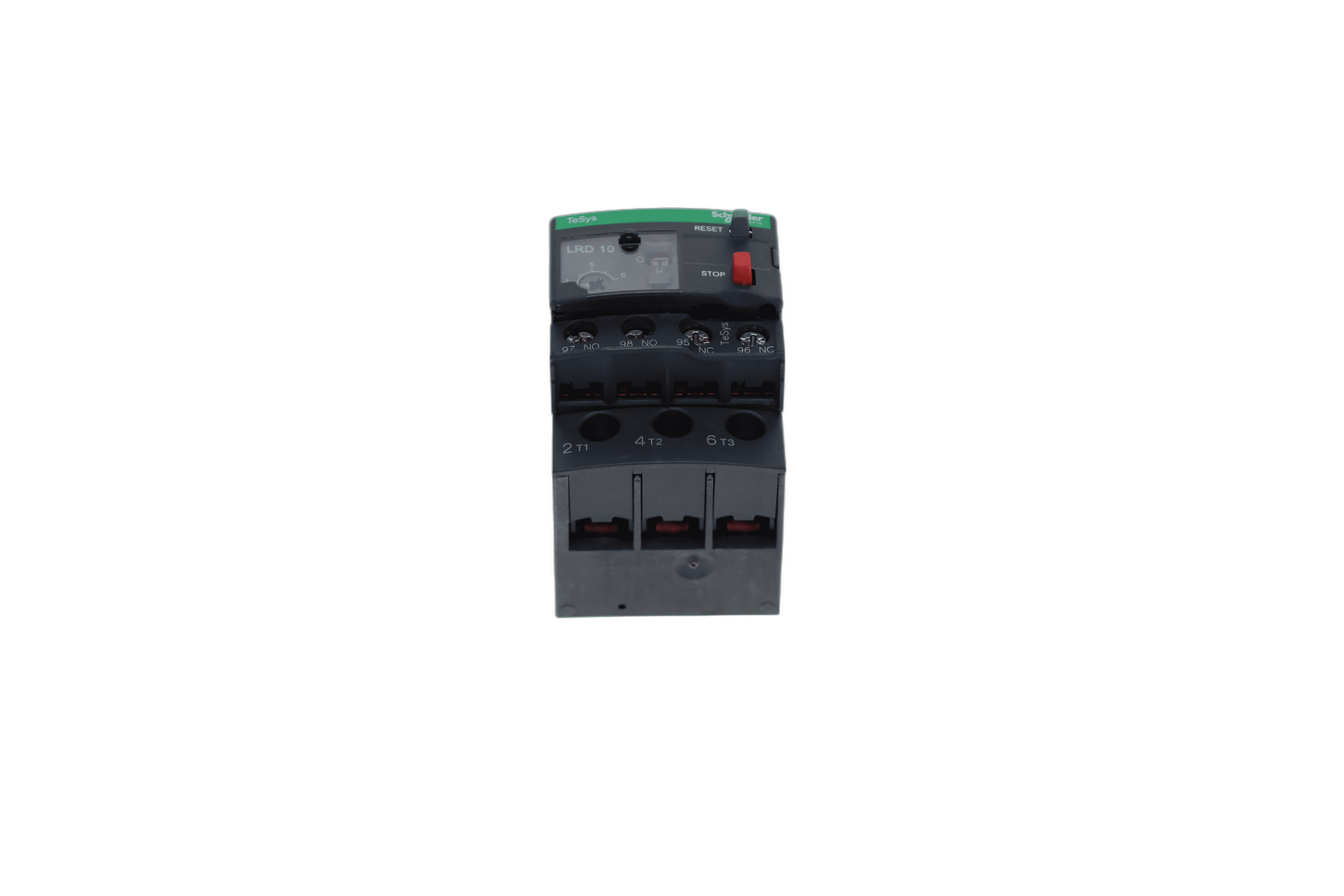

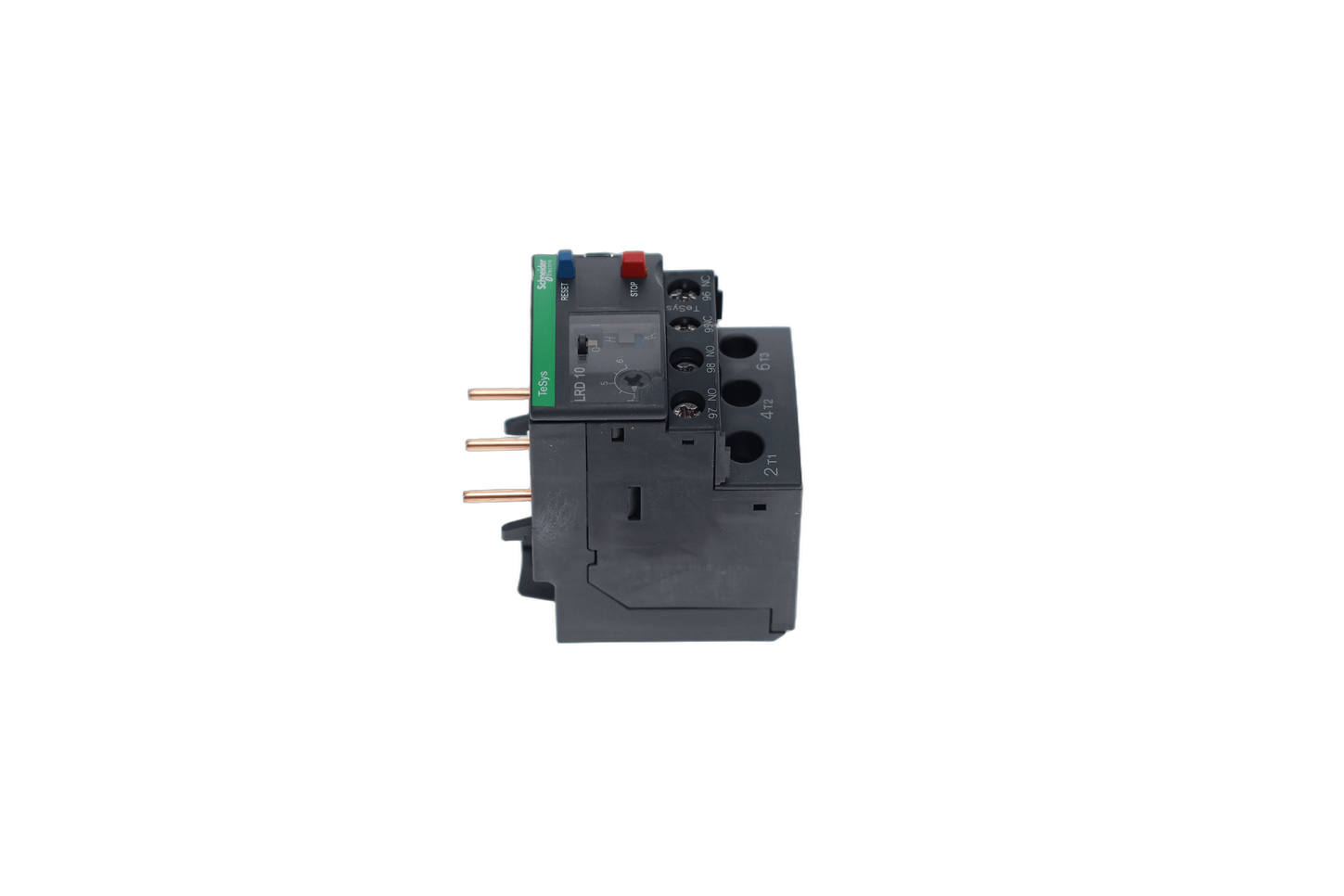

SKU: CS322280
Price: 72.36 USD
Availability: InStock

SKU: CS322280MPN: LRD10UPC/EAN: 3389110346794

Thermal overload relay, TeSys Deca, 690VAC, 3P, 4 to 6A, 1NO+1NC, class 10A, screw clamp

$72.36

Unit

2 in stock

Quantity

remove

add

Product Details

Overload Relay (TeSys D) Class 10 with Single Phase Sens., Trip: 4.0A to 6.0A

Ambient Air Temperature For Storage	-60-70 °C
Auxiliary Contact Composition	1 NO + 1 NC
Device Short Name	LRD
Network Frequency	0…400 Hz
Network Type	DC# #AC
Product Certifications	IEC# #UL# #CSA# #CCC# #EAC# #BV# #RINA# #DNV-GL# #LROS (Lloyds register of shipping)# #ATEX INERIS# #UKCA
Product Compatibility	LC1D09# #LC1D32# #LC1D38# #LC1D12# #LC1D18# #LC1D25
Product Name	TeSys LRD# #TeSys Deca
Product Or Component Type	differential thermal overload relay
Range	TeSys# #TeSys Deca
Relay Application	motor protection
Standards	EN/IEC 60947-4-1# #EN/IEC 60947-5-1# #UL 60947-4-1# #UL 60947-5-1# #CSA C22.2 No 60947-4-1# #CSA C22.2 No 60947-5-1# #GB/T 14048.4# #GB/T 14048.5# #EN 50495
Temperature Compensation	-20-60 °C
Thermal Protection Adjustment Range	4-6 A
