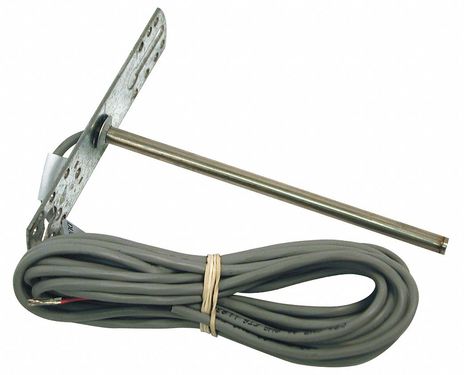

KMC STE-1405

Sensor: Duct Temp, 10K-T3, 4” Probe

The KMC STE-1400 Series, Type III, 10,000 ohm thermistor temperature sensors are available in different housings for surface, duct, duct averaging, immersion, strap-on, and outside air applications. All probes are constructed to provide good heat transfer and fast response. The averaging sensors are available in both plenum-rated cable or with a copper probe.

Each STE-1401/1402/1404/1405 duct sensor is encapsulated in a ¼-inch O.D. stainless-steel probe. The probe protrudes from the bottom of the sensor housing (if included, minimizing lead-length error. The probe can be inserted directly into the duct for single-point monitoring, and mounting holes are provided to rigidly support the assembly.
