KMC STE-1401

Sensor: Duct Temp, 10K-T3, 8” Probe, No Enclosure

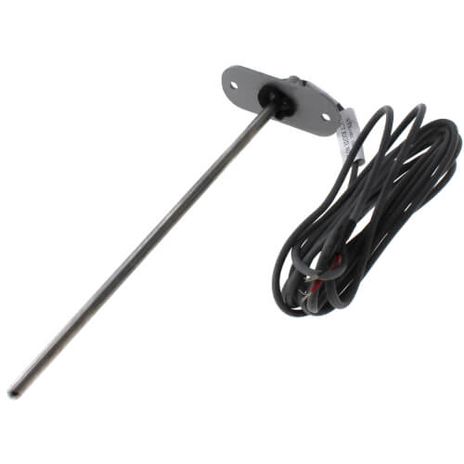

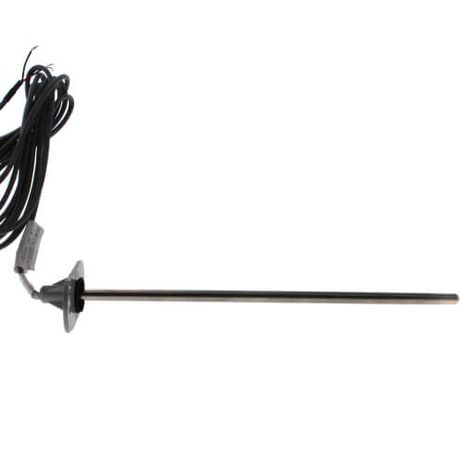

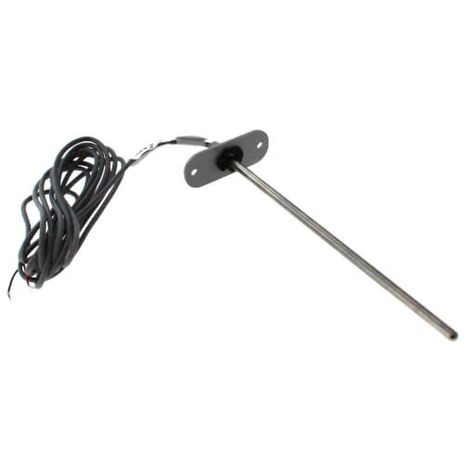

8” Rigid Duct Temperature Sensor w/ 10 Ft. Plenum-Rated Cable, w/o Enclosure

The KMC STE-1400 Series, Type III, 10,000 ohm thermistor temperature sensors are available in different housings for surface, duct, duct averaging, immersion, strap-on, and outside air applications. All probes are constructed to provide good heat transfer and fast response. The averaging sensors are available in both plenum-rated cable or with a copper probe.

Each STE-1401/1402/1404/1405 duct sensor is encapsulated in a ¼-inch O.D. stainless-steel probe. The probe protrudes from the bottom of the sensor housing (if included, minimizing lead-length error. The probe can be inserted directly into the duct for single-point monitoring, and mounting holes are provided to rigidly support the assembly.

Features:

• Type III 10,000 ohm thermistor encapsulated temperature sensors.
• Available in a number of models to accommodate various installation applications.
• Some models are available in either an ABS plastic utility box or optional metal enclosure.
